Definition Type: Element
Name: ChqInstr
Namespace: urn:swift:xsd:$pain.001.001.01
Type: ist:Cheque2
Containing Schema: pain.001.001.01.xsd
MinOccurs 0
MaxOccurs (1)
Abstract

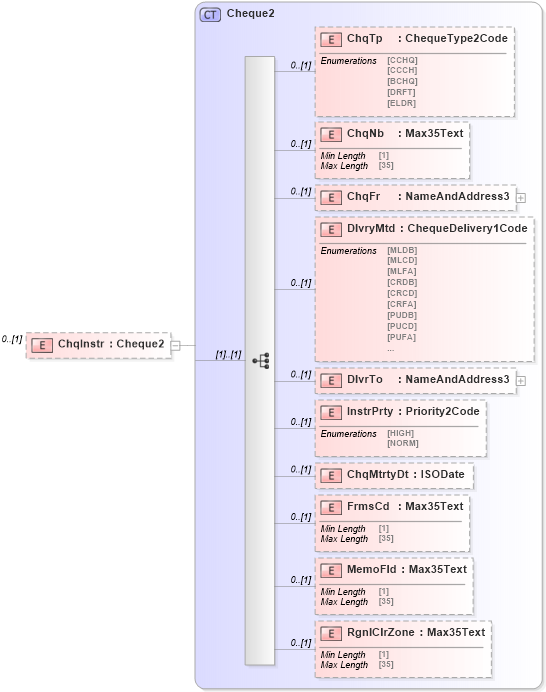

Collapse XSD Schema Diagram:
Drilldown into RgnlClrZone in schema pain_001_001_01_xsd Drilldown into MemoFld in schema pain_001_001_01_xsd Drilldown into FrmsCd in schema pain_001_001_01_xsd Drilldown into ChqMtrtyDt in schema pain_001_001_01_xsd Drilldown into InstrPrty in schema pain_001_001_01_xsd Drilldown into DlvrTo in schema pain_001_001_01_xsd Drilldown into DlvryMtd in schema pain_001_001_01_xsd Drilldown into ChqFr in schema pain_001_001_01_xsd Drilldown into ChqNb in schema pain_001_001_01_xsd Drilldown into ChqTp in schema pain_001_001_01_xsd Drilldown into Cheque2 in schema pain_001_001_01_xsdXSD Diagram of ChqInstr in schema pain_001_001_01_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xs:element name="ChqInstr" type="Cheque2" minOccurs="0" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ChqTp ist:ChqTp 0 (1)
ChqNb ist:ChqNb 0 (1)
ChqFr ist:ChqFr 0 (1)
DlvryMtd ist:DlvryMtd 0 (1)
DlvrTo ist:DlvrTo 0 (1)
InstrPrty ist:InstrPrty 0 (1)
ChqMtrtyDt ist:ChqMtrtyDt 0 (1)
FrmsCd ist:FrmsCd 0 (1)
MemoFld ist:MemoFld 0 (1)
RgnlClrZone ist:RgnlClrZone 0 (1)
Collapse Derivation Tree:
