Definition Type: ComplexType
Name: ClassificationBaseType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: Components.xsd
Abstract True

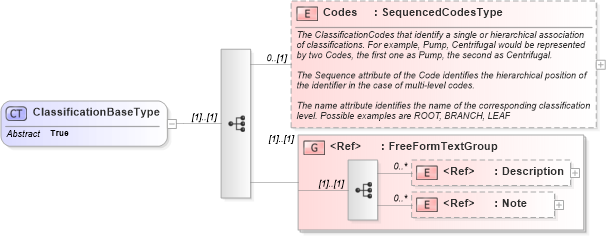

Collapse XSD Schema Diagram:
Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into Codes in schema components_xsdXSD Diagram of ClassificationBaseType in schema components_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="ClassificationBaseType" abstract="true">
    <xsd:sequence>
        <xsd:element name="Codes" type="SequencedCodesType" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>The ClassificationCodes that identify a single or hierarchical association of classifications. For example, Pump, Centrifugal would be represented by two Codes, the first one as Pump, the second as Centrifugal.

The Sequence attribute of the Code identifies the hierarchical position of the identifier in the case of multi-level codes.

The name attribute identifies the name of the corresponding classification level. Possible examples are ROOT, BRANCH, LEAF</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:group ref="FreeFormTextGroup" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Codes nsA:Codes 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
<xs:group> nsA:FreeFormTextGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:ClassificationType, nsA:SemanticClassificationType
