Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: ClassificationScheme
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ClassificationSchemeType
Containing Schema: Catalog.xsd
Abstract
Documentation:
Describes the classification scheme as a whole. A Catalog can have one ClassificationScheme associated with it. For example, a classification scheme for inventory management may classify items according to handling characteristics.

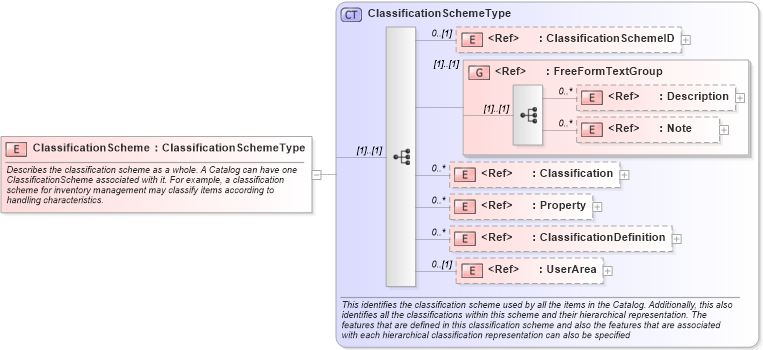

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into ClassificationDefinition in schema catalog_xsd Drilldown into Property in schema components_xsd Drilldown into Classification in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into ClassificationSchemeID in schema fields_xsd Drilldown into ClassificationSchemeType in schema catalog_xsdXSD Diagram of ClassificationScheme in schema catalog_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="ClassificationScheme" type="ClassificationSchemeType">
    <xsd:annotation>
        <xsd:documentation>Describes the classification scheme as a whole. A Catalog can have one ClassificationScheme associated with it. For example, a classification scheme for inventory management may classify items according to handling characteristics.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ClassificationSchemeID nsA:ClassificationSchemeID 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
Classification nsA:Classification 0 unbounded
Property nsA:Property 0 unbounded
ClassificationDefinition nsA:ClassificationDefinition 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
Collapse Derivation Tree:
