Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: ClrSysMmbId
Namespace: urn:swift:xsd:$pain.001.001.01
Type: ist:ClearingSystemMemberIdentificationChoice
Containing Schema: pain.001.001.01.xsd
MinOccurs 0
MaxOccurs (1)
Abstract

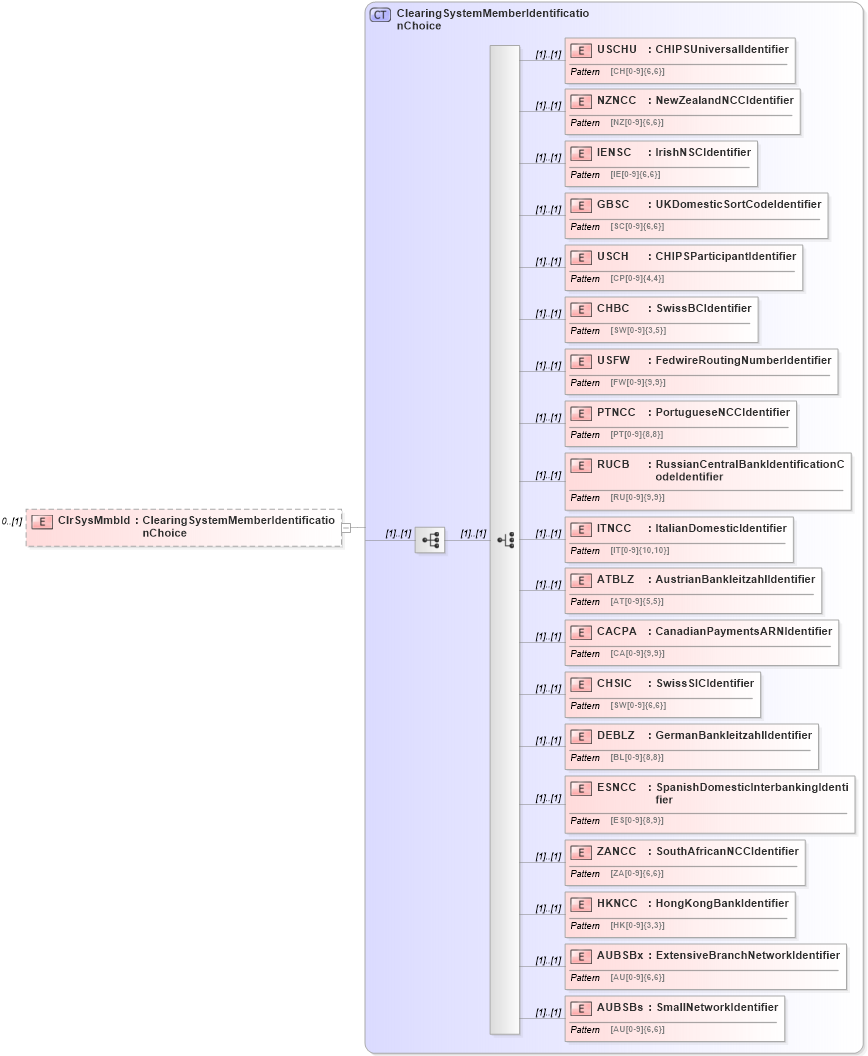

Collapse XSD Schema Diagram:
Drilldown into AUBSBs in schema pain_001_001_01_xsd Drilldown into AUBSBx in schema pain_001_001_01_xsd Drilldown into HKNCC in schema pain_001_001_01_xsd Drilldown into ZANCC in schema pain_001_001_01_xsd Drilldown into ESNCC in schema pain_001_001_01_xsd Drilldown into DEBLZ in schema pain_001_001_01_xsd Drilldown into CHSIC in schema pain_001_001_01_xsd Drilldown into CACPA in schema pain_001_001_01_xsd Drilldown into ATBLZ in schema pain_001_001_01_xsd Drilldown into ITNCC in schema pain_001_001_01_xsd Drilldown into RUCB in schema pain_001_001_01_xsd Drilldown into PTNCC in schema pain_001_001_01_xsd Drilldown into USFW in schema pain_001_001_01_xsd Drilldown into CHBC in schema pain_001_001_01_xsd Drilldown into USCH in schema pain_001_001_01_xsd Drilldown into GBSC in schema pain_001_001_01_xsd Drilldown into IENSC in schema pain_001_001_01_xsd Drilldown into NZNCC in schema pain_001_001_01_xsd Drilldown into USCHU in schema pain_001_001_01_xsd Drilldown into ClearingSystemMemberIdentificationChoice in schema pain_001_001_01_xsdXSD Diagram of ClrSysMmbId in schema pain_001_001_01_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xs:element name="ClrSysMmbId" type="ClearingSystemMemberIdentificationChoice" minOccurs="0" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
USCHU ist:USCHU (1) (1)
NZNCC ist:NZNCC (1) (1)
IENSC ist:IENSC (1) (1)
GBSC ist:GBSC (1) (1)
USCH ist:USCH (1) (1)
CHBC ist:CHBC (1) (1)
USFW ist:USFW (1) (1)
PTNCC ist:PTNCC (1) (1)
RUCB ist:RUCB (1) (1)
ITNCC ist:ITNCC (1) (1)
ATBLZ ist:ATBLZ (1) (1)
CACPA ist:CACPA (1) (1)
CHSIC ist:CHSIC (1) (1)
DEBLZ ist:DEBLZ (1) (1)
ESNCC ist:ESNCC (1) (1)
ZANCC ist:ZANCC (1) (1)
HKNCC ist:HKNCC (1) (1)
AUBSBx ist:AUBSBx (1) (1)
AUBSBs ist:AUBSBs (1) (1)
Collapse Derivation Tree:
