Definition Type: Group
Name: CommonTimeReporting
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: Components.xsd
Documentation:
Used in the HR Nouns

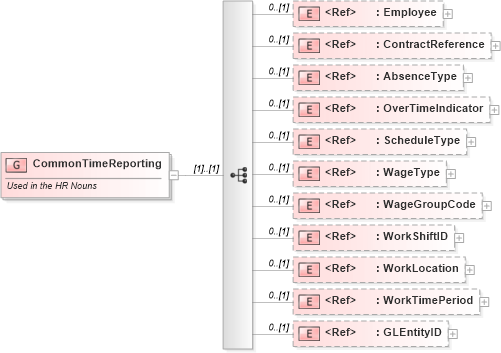

Collapse XSD Schema Diagram:
Drilldown into GLEntityID in schema fields_xsd Drilldown into WorkTimePeriod in schema components_xsd Drilldown into WorkLocation in schema components_xsd Drilldown into WorkShiftID in schema fields_xsd Drilldown into WageGroupCode in schema fields_xsd Drilldown into WageType in schema fields_xsd Drilldown into ScheduleType in schema fields_xsd Drilldown into OverTimeIndicator in schema fields_xsd Drilldown into AbsenceType in schema fields_xsd Drilldown into ContractReference in schema components_xsd Drilldown into Employee in schema components_xsdXSD Diagram of CommonTimeReporting in schema components_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:group name="CommonTimeReporting">
    <xsd:annotation>
        <xsd:documentation>Used in the HR Nouns</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="Employee" minOccurs="0" />
        <xsd:element ref="ContractReference" minOccurs="0" />
        <xsd:element ref="AbsenceType" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation source="http://www.openapplications.org/oagis/9">This describes the type of absence a worker is reporting in a time and attendance collection process</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="OverTimeIndicator" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation source="http://www.openapplications.org/oagis/9">This is used to identify work subject to overtime processing. </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ScheduleType" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>ScheduleType is a code or identifier that describes the specific schedule and can be used in a variety of contexts. When used in the context of employee, ScheduleType refers to the specific schedule for the employee or worker.

When used in the context of a Schedule, ScheduleType indicates whether the Schedule is a demand schedule from a customer or a supply schedule from a supplier. Valid values for this context are: “Demand”, “Supplier”</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="WageType" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>This is a code or identifier that describes the specific type a wage an employee or worker is paid. Examples include: Exempt from Overtime, Non-Exempt from Overtime</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="WageGroupCode" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>This is used to classify an employee’s wage</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="WorkShiftID" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>This is the Employee Shift Identifier. ShiftId describes the regular or standard authorized work time for the employee</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="WorkLocation" minOccurs="0" />
        <xsd:element ref="WorkTimePeriod" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation source="http://www.openapplications.org/oagis/9">This is the time of a business reporting period</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="GLEntityID" minOccurs="0" />
    </xsd:sequence>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Employee nsA:Employee 0 (1)
ContractReference nsA:ContractReference 0 (1)
AbsenceType nsA:AbsenceType 0 (1)
OverTimeIndicator nsA:OverTimeIndicator 0 (1)
ScheduleType nsA:ScheduleType 0 (1)
WageType nsA:WageType 0 (1)
WageGroupCode nsA:WageGroupCode 0 (1)
WorkShiftID nsA:WorkShiftID 0 (1)
WorkLocation nsA:WorkLocation 0 (1)
WorkTimePeriod nsA:WorkTimePeriod 0 (1)
GLEntityID nsA:GLEntityID 0 (1)
