Definition Type: ComplexType
Name: CommunicationABIEType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: Components.xsd
Abstract
Documentation:
CommunicationABIEType is logically derived from UN/CEFACT TBG17 ABIE CommunicationType as defined in the Reusable Aggregate Business Information Entity (RUABIE) XML Schema file.

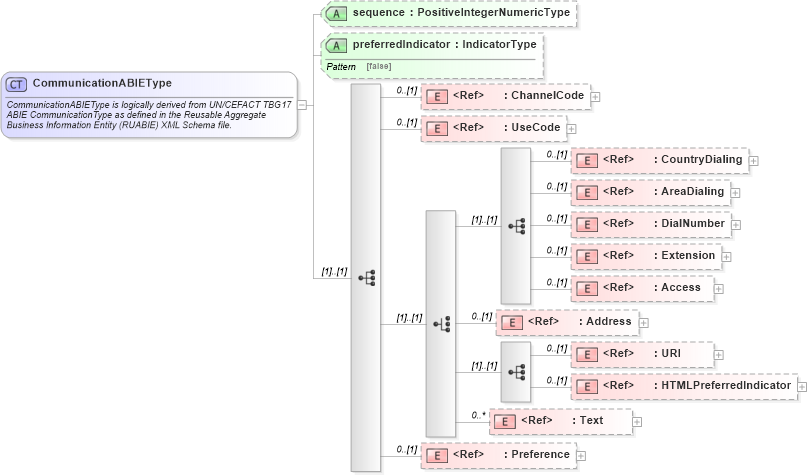

Collapse XSD Schema Diagram:
Drilldown into Preference in schema components_xsd Drilldown into Text in schema fields_xsd Drilldown into HTMLPreferredIndicator in schema fields_xsd Drilldown into URI in schema fields_xsd Drilldown into Address in schema components_xsd Drilldown into Access in schema fields_xsd Drilldown into Extension in schema fields_xsd Drilldown into DialNumber in schema fields_xsd Drilldown into AreaDialing in schema fields_xsd Drilldown into CountryDialing in schema fields_xsd Drilldown into UseCode in schema fields_xsd Drilldown into ChannelCode in schema fields_xsd Drilldown into preferredIndicator in schema components_xsd Drilldown into sequence in schema components_xsdXSD Diagram of CommunicationABIEType in schema components_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="CommunicationABIEType">
    <xsd:annotation>
        <xsd:documentation>CommunicationABIEType is logically derived from UN/CEFACT TBG17 ABIE CommunicationType as defined in the Reusable Aggregate Business Information Entity (RUABIE) XML Schema file.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="ChannelCode" minOccurs="0" />
        <xsd:element ref="UseCode" minOccurs="0" />
        <xsd:choice>
            <xsd:sequence>
                <xsd:element ref="CountryDialing" minOccurs="0" />
                <xsd:element ref="AreaDialing" minOccurs="0" />
                <xsd:element ref="DialNumber" minOccurs="0" />
                <xsd:element ref="Extension" minOccurs="0" />
                <xsd:element ref="Access" minOccurs="0" />
            </xsd:sequence>
            <xsd:element ref="Address" minOccurs="0" />
            <xsd:sequence>
                <xsd:element ref="URI" minOccurs="0" />
                <xsd:element ref="HTMLPreferredIndicator" minOccurs="0" />
            </xsd:sequence>
            <xsd:element ref="Text" minOccurs="0" maxOccurs="unbounded" />
        </xsd:choice>
        <xsd:element ref="Preference" minOccurs="0" />
    </xsd:sequence>
    <xsd:attribute name="sequence" type="PositiveIntegerNumericType" />
    <xsd:attribute name="preferredIndicator" type="IndicatorType" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ChannelCode nsA:ChannelCode 0 (1)
UseCode nsA:UseCode 0 (1)
CountryDialing nsA:CountryDialing 0 (1)
AreaDialing nsA:AreaDialing 0 (1)
DialNumber nsA:DialNumber 0 (1)
Extension nsA:Extension 0 (1)
Access nsA:Access 0 (1)
Address nsA:Address 0 (1)
URI nsA:URI 0 (1)
HTMLPreferredIndicator nsA:HTMLPreferredIndicator 0 (1)
Text nsA:Text 0 unbounded
Preference nsA:Preference 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
sequence nsA:sequence (Optional)
preferredIndicator nsA:preferredIndicator (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:CommunicationType
