Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: ConfirmationCode
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ConfirmationResponseCodeType
Containing Schema: Meta.xsd
Abstract
Documentation:
Is an option controlled by the Sender business application. It is a request to the receiving application to send back a confirmation BOD to the sender. The confirmation Business Object Document may indicate the successful processing of the original Business Object Document or return error conditions if the original Business Object Document was unsuccessful. The confirmation request has the following valid values: Never - No confirmation Business Object Document requested OnError - OnError send back a confirmation Business Object Document only if an error has occurred Always - Always send a confirmation Business Object Document regardless

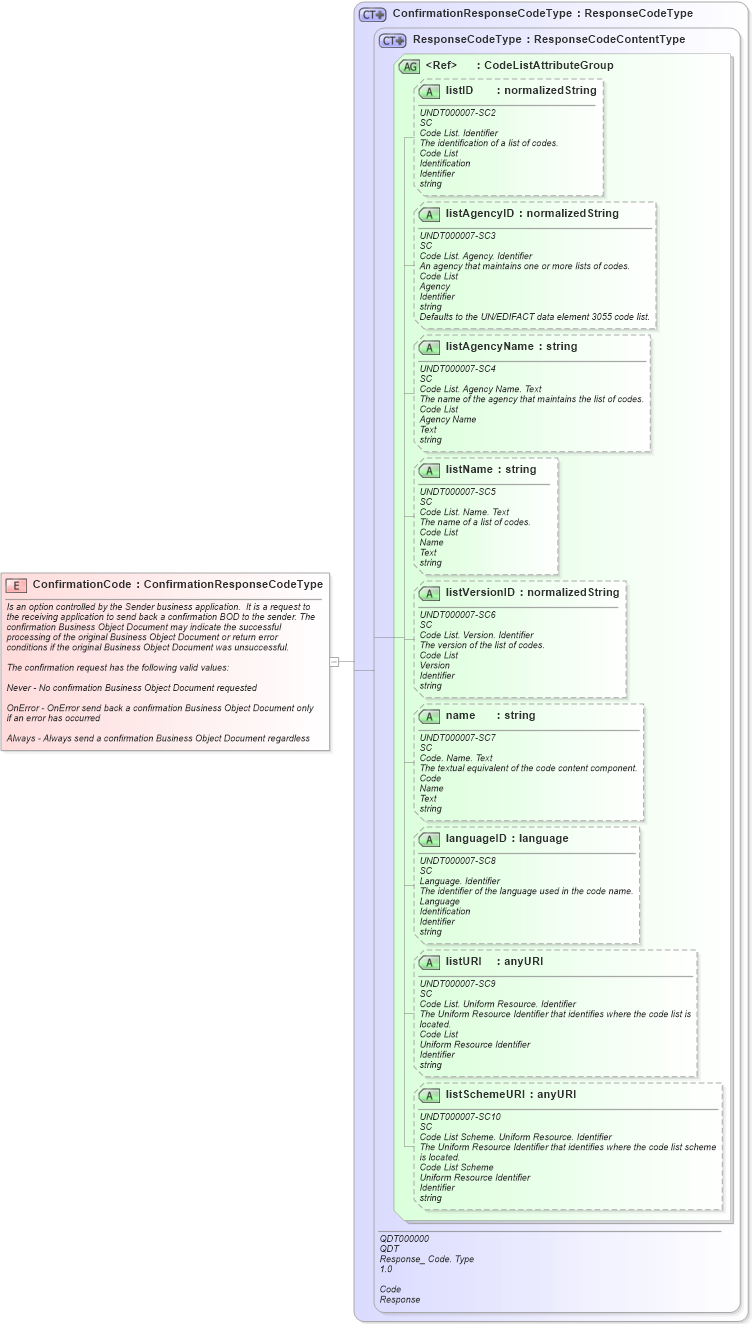

Collapse XSD Schema Diagram:
Drilldown into listSchemeURI in schema fields_xsd Drilldown into listURI in schema fields_xsd Drilldown into languageID in schema fields_xsd Drilldown into name in schema fields_xsd Drilldown into listVersionID in schema fields_xsd Drilldown into listName in schema fields_xsd Drilldown into listAgencyName in schema fields_xsd Drilldown into listAgencyID in schema fields_xsd Drilldown into listID in schema fields_xsd Drilldown into CodeListAttributeGroup in schema fields_xsd Drilldown into ResponseCodeType in schema fields_xsd Drilldown into ConfirmationResponseCodeType in schema fields_xsdXSD Diagram of ConfirmationCode in schema meta_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="ConfirmationCode" type="ConfirmationResponseCodeType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis">Is an option controlled by the Sender business application.  It is a request to the receiving application to send back a confirmation BOD to the sender. The confirmation Business Object Document may indicate the successful processing of the original Business Object Document or return error conditions if the original Business Object Document was unsuccessful.

The confirmation request has the following valid values:

Never - No confirmation Business Object Document requested

OnError - OnError send back a confirmation Business Object Document only if an error has occurred

Always - Always send a confirmation Business Object Document regardless</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
listID nsA:listID Optional
listAgencyID nsA:listAgencyID Optional
listAgencyName nsA:listAgencyName Optional
listName nsA:listName Optional
listVersionID nsA:listVersionID Optional
name nsA:name Optional
languageID nsA:languageID Optional
listURI nsA:listURI Optional
listSchemeURI nsA:listSchemeURI Optional
Collapse Derivation Tree:
