Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: ContainerType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ContainerBaseType
Containing Schema: LogisticsComponents.xsd
Abstract

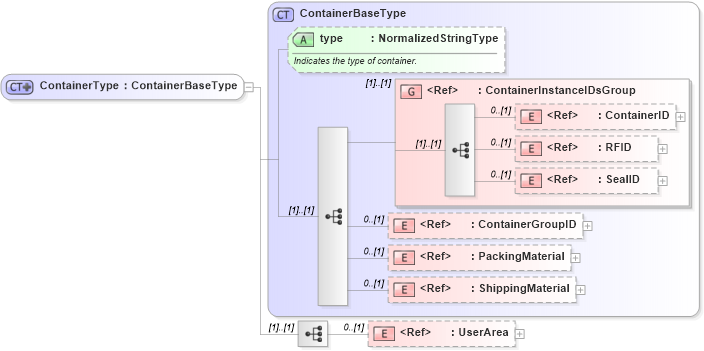

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into ShippingMaterial in schema components_xsd Drilldown into PackingMaterial in schema components_xsd Drilldown into ContainerGroupID in schema fields_xsd Drilldown into SealID in schema fields_xsd Drilldown into RFID in schema fields_xsd Drilldown into ContainerID in schema fields_xsd Drilldown into ContainerInstanceIDsGroup in schema logisticscomponents_xsd Drilldown into type in schema logisticscomponents_xsd Drilldown into ContainerBaseType in schema logisticscomponents_xsdXSD Diagram of ContainerType in schema logisticscomponents_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="ContainerType">
    <xsd:complexContent>
        <xsd:extension base="ContainerBaseType">
            <xsd:sequence>
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ContainerID nsA:ContainerID 0 (1)
RFID nsA:RFID 0 (1)
SealID nsA:SealID 0 (1)
ContainerGroupID nsA:ContainerGroupID 0 (1)
PackingMaterial nsA:PackingMaterial 0 (1)
ShippingMaterial nsA:ShippingMaterial 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:ContainerInstanceIDsGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type nsA:type (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:Container
