Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: ControlProcess
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ControlProcessType
Containing Schema: RiskControlLibrary.xsd
Abstract

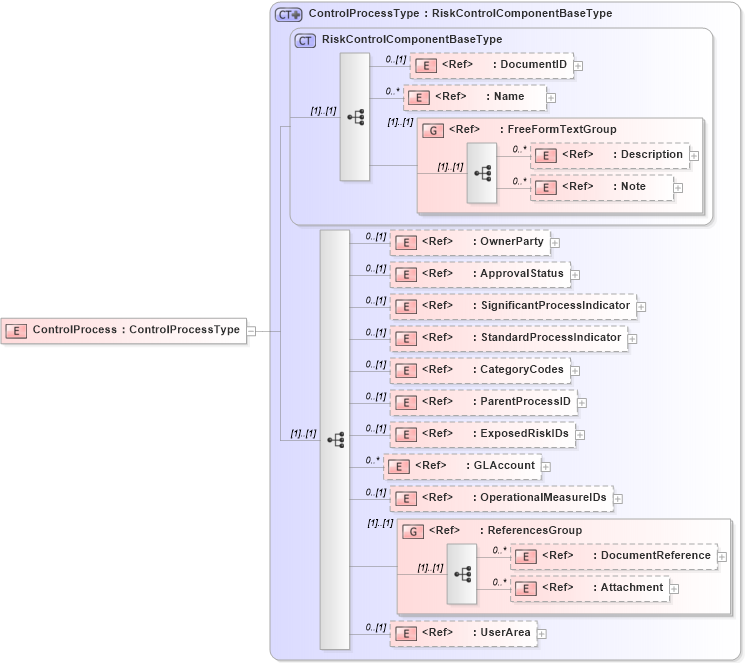

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into OperationalMeasureIDs in schema components_xsd Drilldown into GLAccount in schema components_xsd Drilldown into ExposedRiskIDs in schema components_xsd Drilldown into ParentProcessID in schema fields_xsd Drilldown into CategoryCodes in schema components_xsd Drilldown into StandardProcessIndicator in schema fields_xsd Drilldown into SignificantProcessIndicator in schema fields_xsd Drilldown into ApprovalStatus in schema components_xsd Drilldown into OwnerParty in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into Name in schema fields_xsd Drilldown into DocumentID in schema components_xsd Drilldown into RiskControlComponentBaseType in schema riskcontrollibrary_xsd Drilldown into ControlProcessType in schema riskcontrollibrary_xsdXSD Diagram of ControlProcess in schema riskcontrollibrary_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="ControlProcess" type="ControlProcessType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID 0 (1)
Name nsA:Name 0 unbounded
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
OwnerParty nsA:OwnerParty 0 (1)
ApprovalStatus nsA:ApprovalStatus 0 (1)
SignificantProcessIndicator nsA:SignificantProcessIndicator 0 (1)
StandardProcessIndicator nsA:StandardProcessIndicator 0 (1)
CategoryCodes nsA:CategoryCodes 0 (1)
ParentProcessID nsA:ParentProcessID 0 (1)
ExposedRiskIDs nsA:ExposedRiskIDs 0 (1)
GLAccount nsA:GLAccount 0 unbounded
OperationalMeasureIDs nsA:OperationalMeasureIDs 0 (1)
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
Collapse Derivation Tree:
