Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: CostingActivity
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:CostingActivityType
Containing Schema: CostingActivity.xsd
Abstract
Documentation:
For Dual Cycle accounting applications, ACTIVITY is used to communicate the details of the activities in the Manufacturing Application that caused the entries in the Journal

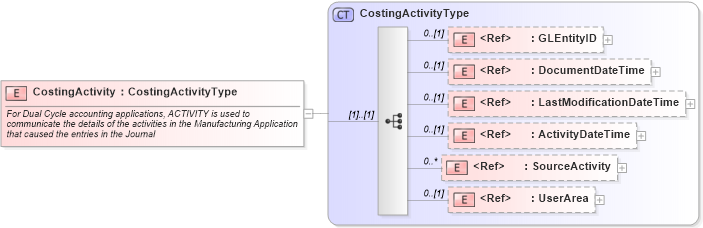

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into SourceActivity in schema costingactivity_xsd Drilldown into ActivityDateTime in schema fields_xsd Drilldown into LastModificationDateTime in schema fields_xsd Drilldown into DocumentDateTime in schema fields_xsd Drilldown into GLEntityID in schema fields_xsd Drilldown into CostingActivityType in schema costingactivity_xsdXSD Diagram of CostingActivity in schema costingactivity_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="CostingActivity" type="CostingActivityType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">For Dual Cycle accounting applications, ACTIVITY is used to communicate the details of the activities in the Manufacturing Application that caused the entries in the Journal</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
GLEntityID nsA:GLEntityID 0 (1)
DocumentDateTime nsA:DocumentDateTime 0 (1)
LastModificationDateTime nsA:LastModificationDateTime 0 (1)
ActivityDateTime nsA:ActivityDateTime 0 (1)
SourceActivity nsA:SourceActivity 0 unbounded
UserArea nsA:UserArea 0 (1)
Collapse Derivation Tree:
