Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: CreditStatusType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:CreditBaseType
Containing Schema: CreditStatus.xsd
Abstract

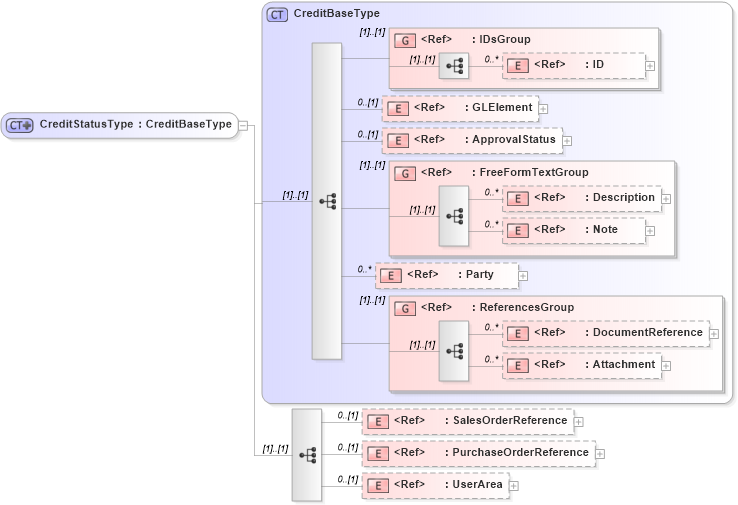

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into PurchaseOrderReference in schema components_xsd Drilldown into SalesOrderReference in schema components_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Party in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into ApprovalStatus in schema components_xsd Drilldown into GLElement in schema components_xsd Drilldown into ID in schema fields_xsd Drilldown into IDsGroup in schema components_xsd Drilldown into CreditBaseType in schema components_xsd1XSD Diagram of CreditStatusType in schema creditstatus_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="CreditStatusType">
    <xsd:complexContent>
        <xsd:extension base="CreditBaseType">
            <xsd:sequence>
                <xsd:element ref="SalesOrderReference" minOccurs="0" />
                <xsd:element ref="PurchaseOrderReference" minOccurs="0" />
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 unbounded
GLElement nsA:GLElement 0 (1)
ApprovalStatus nsA:ApprovalStatus 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
Party nsA:Party 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
SalesOrderReference nsA:SalesOrderReference 0 (1)
PurchaseOrderReference nsA:PurchaseOrderReference 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:IDsGroup (1) (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:CreditStatus
