Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: CustomerPartyMasterType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:PartyMasterBaseType
Containing Schema: CustomerPartyMaster.xsd
Abstract

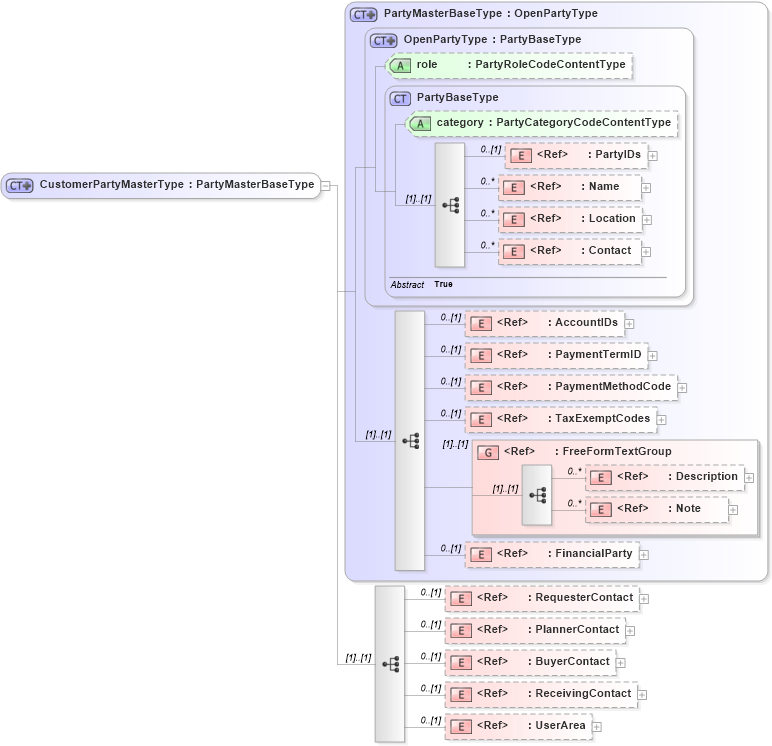

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into ReceivingContact in schema components_xsd Drilldown into BuyerContact in schema components_xsd Drilldown into PlannerContact in schema components_xsd Drilldown into RequesterContact in schema components_xsd Drilldown into FinancialParty in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into TaxExemptCodes in schema components_xsd Drilldown into PaymentMethodCode in schema fields_xsd Drilldown into PaymentTermID in schema fields_xsd Drilldown into AccountIDs in schema components_xsd Drilldown into Contact in schema components_xsd Drilldown into Location in schema components_xsd Drilldown into Name in schema fields_xsd Drilldown into PartyIDs in schema components_xsd Drilldown into category in schema components_xsd Drilldown into PartyBaseType in schema components_xsd Drilldown into role in schema components_xsd Drilldown into OpenPartyType in schema components_xsd Drilldown into PartyMasterBaseType in schema components_xsdXSD Diagram of CustomerPartyMasterType in schema customerpartymaster_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="CustomerPartyMasterType">
    <xsd:complexContent>
        <xsd:extension base="PartyMasterBaseType">
            <xsd:sequence>
                <xsd:element ref="RequesterContact" minOccurs="0" />
                <xsd:element ref="PlannerContact" minOccurs="0" />
                <xsd:element ref="BuyerContact" minOccurs="0" />
                <xsd:element ref="ReceivingContact" minOccurs="0" />
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PartyIDs nsA:PartyIDs 0 (1)
Name nsA:Name 0 unbounded
Location nsA:Location 0 unbounded
Contact nsA:Contact 0 unbounded
AccountIDs nsA:AccountIDs 0 (1)
PaymentTermID nsA:PaymentTermID 0 (1)
PaymentMethodCode nsA:PaymentMethodCode 0 (1)
TaxExemptCodes nsA:TaxExemptCodes 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
FinancialParty nsA:FinancialParty 0 (1)
RequesterContact nsA:RequesterContact 0 (1)
PlannerContact nsA:PlannerContact 0 (1)
BuyerContact nsA:BuyerContact 0 (1)
ReceivingContact nsA:ReceivingContact 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
category nsA:category (Optional)
role nsA:role (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:CustomerPartyMaster
