Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: DataArea
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:GetWIPStatusDataAreaType
Containing Schema: GetWIPStatus.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Is where the information that the BOD message carries is provided, in this case GetWIPStatus. The information consists of a Verb and one or more Nouns. The verb (Get) indicates the action to be performed on the Noun (WIPStatus).

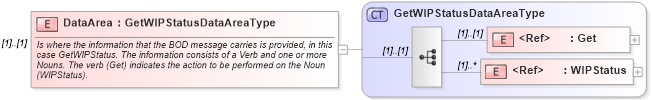

Collapse XSD Schema Diagram:
Drilldown into WIPStatus in schema wipstatus_xsd Drilldown into Get in schema meta_xsd Drilldown into GetWIPStatusDataAreaType in schema getwipstatus_xsdXSD Diagram of DataArea in schema getwipstatus_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="DataArea" type="GetWIPStatusDataAreaType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">Is where the information that the BOD message carries is provided, in this case GetWIPStatus. The information consists of a Verb and one or more Nouns. The verb (Get) indicates the action to be performed on the Noun (WIPStatus).</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Get nsA:Get (1) (1)
WIPStatus nsA:WIPStatus (1) unbounded
Collapse Derivation Tree:
