Definition Type: Element
Name: DataArea
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ListMaintenanceOrderDataAreaType
Containing Schema: ListMaintenanceOrder.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Is where the information that the BOD message carries is provided, in this case ListMaintenanceOrder. The information consists of a Verb and one or more Nouns. The verb (List) indicates the action to be performed on the Noun (MaintenanceOrder).
Collapse XSD Schema Diagram:

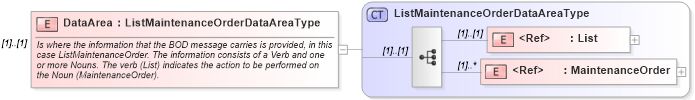

Drilldown into MaintenanceOrder in schema maintenanceorder_xsd Drilldown into List in schema meta_xsd Drilldown into ListMaintenanceOrderDataAreaType in schema listmaintenanceorder_xsdXSD Diagram of DataArea in schema listmaintenanceorder_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="DataArea" type="ListMaintenanceOrderDataAreaType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">Is where the information that the BOD message carries is provided, in this case ListMaintenanceOrder. The information consists of a Verb and one or more Nouns. The verb (List) indicates the action to be performed on the Noun (MaintenanceOrder).</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
List nsA:List (1) (1)
MaintenanceOrder nsA:MaintenanceOrder (1) unbounded
Collapse Derivation Tree:
