Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: DataArea
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ProcessProductAvailabilityDataAreaType
Containing Schema: ProcessProductAvailability.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Is where the information that the BOD message carries is provided, in this case ProcessProductAvailability. The information consists of a Verb and one or more Nouns. The verb (Process) indicates the action to be performed on the Noun (ProductAvailability ).

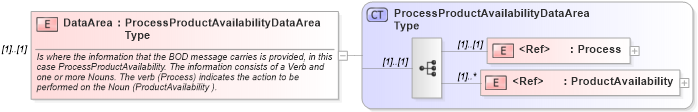

Collapse XSD Schema Diagram:
Drilldown into ProductAvailability in schema productavailability_xsd Drilldown into Process in schema meta_xsd Drilldown into ProcessProductAvailabilityDataAreaType in schema processproductavailability_xsdXSD Diagram of DataArea in schema processproductavailability_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="DataArea" type="ProcessProductAvailabilityDataAreaType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">Is where the information that the BOD message carries is provided, in this case ProcessProductAvailability. The information consists of a Verb and one or more Nouns. The verb (Process) indicates the action to be performed on the Noun (ProductAvailability ).</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Process nsA:Process (1) (1)
ProductAvailability nsA:ProductAvailability (1) unbounded
Collapse Derivation Tree:
