Definition Type: Element
Name: DataArea
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:RespondPickListDataAreaType
Containing Schema: RespondPickList.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Is where the information that the BOD message carries is provided, in this case RespondPickList. The information consists of a Verb and one or more Nouns. The verb (Respond) indicates the action to be performed on the Noun (PickList).

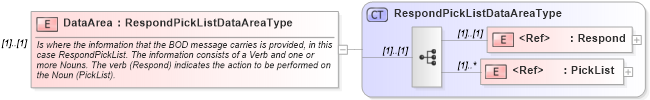

Collapse XSD Schema Diagram:
Drilldown into PickList in schema picklist_xsd Drilldown into Respond in schema meta_xsd Drilldown into RespondPickListDataAreaType in schema respondpicklist_xsdXSD Diagram of DataArea in schema respondpicklist_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="DataArea" type="RespondPickListDataAreaType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">Is where the information that the BOD message carries is provided, in this case RespondPickList. The information consists of a Verb and one or more Nouns. The verb (Respond) indicates the action to be performed on the Noun (PickList).</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Respond nsA:Respond (1) (1)
PickList nsA:PickList (1) unbounded
Collapse Derivation Tree:
