Definition Type: Element
Name: DataArea
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ShowMoveWIPDataAreaType
Containing Schema: ShowMoveWIP.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Is where the information that the BOD message carries is provided, in this case ShowMoveWIP. The information consists of a Verb and one or more Nouns. The verb (Show) indicates the action to be performed on the Noun (MoveWIP).
Collapse XSD Schema Diagram:

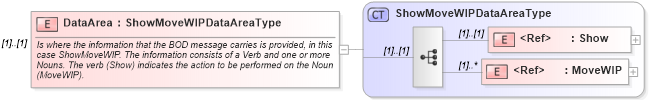

Drilldown into MoveWIP in schema movewip_xsd Drilldown into Show in schema meta_xsd Drilldown into ShowMoveWIPDataAreaType in schema showmovewip_xsdXSD Diagram of DataArea in schema showmovewip_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="DataArea" type="ShowMoveWIPDataAreaType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">Is where the information that the BOD message carries is provided, in this case ShowMoveWIP. The information consists of a Verb and one or more Nouns. The verb (Show) indicates the action to be performed on the Noun (MoveWIP).</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Show nsA:Show (1) (1)
MoveWIP nsA:MoveWIP (1) unbounded
Collapse Derivation Tree:
