Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: DataArea
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:CancelInventoryBalanceDataAreaType
Containing Schema: CancelInventoryBalance.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Is where the information that the BOD message carries is provided, in this case CancelInventoryBalance. The information consists of a Verb and one or more Nouns. The verb (Cancel) indicates the action to be performed on the Noun (InventoryBalance).

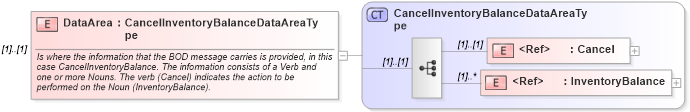

Collapse XSD Schema Diagram:
Drilldown into InventoryBalance in schema inventorybalance_xsd Drilldown into Cancel in schema meta_xsd Drilldown into CancelInventoryBalanceDataAreaType in schema cancelinventorybalance_xsdXSD Diagram of DataArea in schema cancelinventorybalance_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="DataArea" type="CancelInventoryBalanceDataAreaType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">Is where the information that the BOD message carries is provided, in this case CancelInventoryBalance. The information consists of a Verb and one or more Nouns. The verb (Cancel) indicates the action to be performed on the Noun (InventoryBalance).</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Cancel nsA:Cancel (1) (1)
InventoryBalance nsA:InventoryBalance (1) unbounded
Collapse Derivation Tree:
