Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: DataArea
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ChangeCreditDataAreaType
Containing Schema: ChangeCredit.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Is where the information that the BOD message carries is provided, in this case ChangeCredit. The information consists of a Verb and one or more Nouns. The verb (Change) indicates the action to be performed on the Noun (Credit).

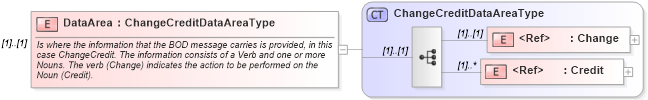

Collapse XSD Schema Diagram:
Drilldown into Credit in schema credit_xsd Drilldown into Change in schema meta_xsd Drilldown into ChangeCreditDataAreaType in schema changecredit_xsdXSD Diagram of DataArea in schema changecredit_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="DataArea" type="ChangeCreditDataAreaType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">Is where the information that the BOD message carries is provided, in this case ChangeCredit. The information consists of a Verb and one or more Nouns. The verb (Change) indicates the action to be performed on the Noun (Credit).</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Change nsA:Change (1) (1)
Credit nsA:Credit (1) unbounded
Collapse Derivation Tree:
