Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: DesignInstance
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:DesignInstanceType
Containing Schema: EngineeringWorkDocument.xsd
Abstract

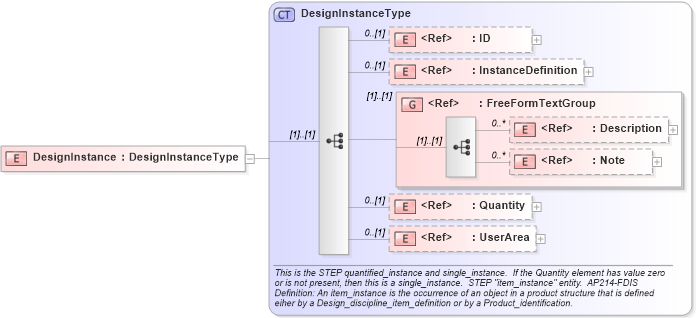

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Quantity in schema fields_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into InstanceDefinition in schema engineeringworkdocument_xsd Drilldown into ID in schema fields_xsd Drilldown into DesignInstanceType in schema engineeringworkdocument_xsdXSD Diagram of DesignInstance in schema engineeringworkdocument_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="DesignInstance" type="DesignInstanceType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 (1)
InstanceDefinition nsA:InstanceDefinition 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
Quantity nsA:Quantity 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
Collapse Derivation Tree:
