Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: DimensionType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:DimensionABIEType
Containing Schema: Components.xsd
Abstract

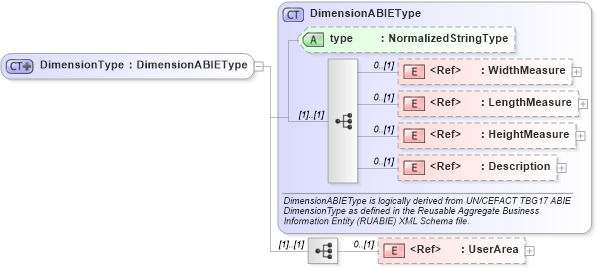

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into HeightMeasure in schema fields_xsd Drilldown into LengthMeasure in schema fields_xsd Drilldown into WidthMeasure in schema fields_xsd Drilldown into type in schema components_xsd Drilldown into DimensionABIEType in schema components_xsdXSD Diagram of DimensionType in schema components_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="DimensionType">
    <xsd:complexContent>
        <xsd:extension base="DimensionABIEType">
            <xsd:sequence>
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
WidthMeasure nsA:WidthMeasure 0 (1)
LengthMeasure nsA:LengthMeasure 0 (1)
HeightMeasure nsA:HeightMeasure 0 (1)
Description nsA:Description 0 (1)
UserArea nsA:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
type nsA:type (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:Dimensions
