Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: DispatchResource
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:DispatchResourceType
Containing Schema: DispatchList.xsd
Abstract
Documentation:
This identifies information concerning the resources associated with a particular WIP operation

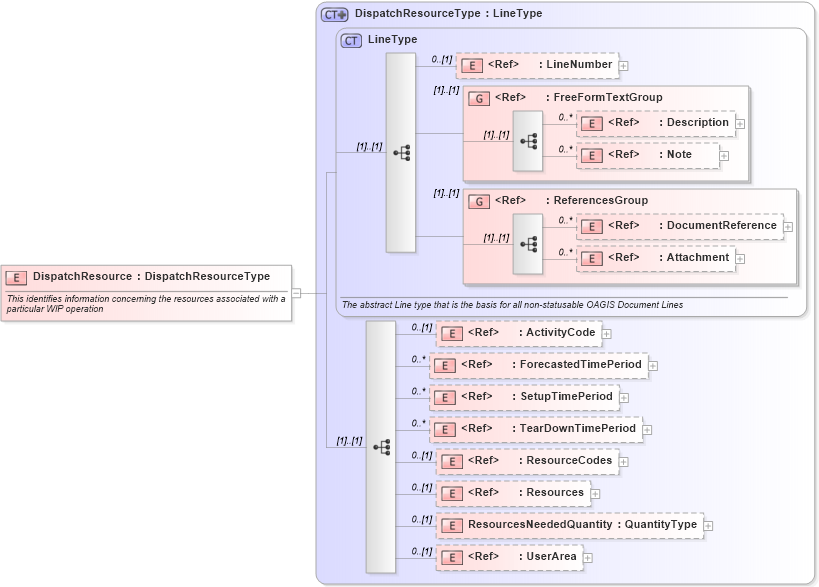

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into ResourcesNeededQuantity in schema dispatchlist_xsd Drilldown into Resources in schema manufacturingcomponents_xsd Drilldown into ResourceCodes in schema components_xsd Drilldown into TearDownTimePeriod in schema components_xsd Drilldown into SetupTimePeriod in schema components_xsd Drilldown into ForecastedTimePeriod in schema components_xsd Drilldown into ActivityCode in schema fields_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into LineNumber in schema fields_xsd Drilldown into LineType in schema components_xsd Drilldown into DispatchResourceType in schema dispatchlist_xsdXSD Diagram of DispatchResource in schema dispatchlist_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="DispatchResource" type="DispatchResourceType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">This identifies information concerning the resources associated with a particular WIP operation</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumber nsA:LineNumber 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
ActivityCode nsA:ActivityCode 0 (1)
ForecastedTimePeriod nsA:ForecastedTimePeriod 0 unbounded
SetupTimePeriod nsA:SetupTimePeriod 0 unbounded
TearDownTimePeriod nsA:TearDownTimePeriod 0 unbounded
ResourceCodes nsA:ResourceCodes 0 (1)
Resources nsA:Resources 0 (1)
ResourcesNeededQuantity nsA:ResourcesNeededQuantity 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
Collapse Derivation Tree:
