Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: DistributedTaxType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:TaxABIEType
Containing Schema: Components.xsd
Abstract

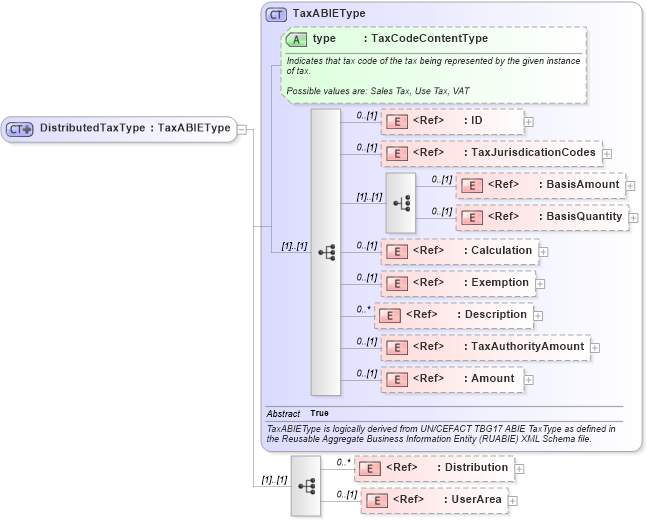

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Distribution in schema components_xsd Drilldown into Amount in schema fields_xsd Drilldown into TaxAuthorityAmount in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into Exemption in schema components_xsd Drilldown into Calculation in schema components_xsd Drilldown into BasisQuantity in schema fields_xsd Drilldown into BasisAmount in schema fields_xsd Drilldown into TaxJurisdicationCodes in schema components_xsd Drilldown into ID in schema fields_xsd Drilldown into type in schema components_xsd Drilldown into TaxABIEType in schema components_xsdXSD Diagram of DistributedTaxType in schema components_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="DistributedTaxType">
    <xsd:complexContent>
        <xsd:extension base="TaxABIEType">
            <xsd:sequence>
                <xsd:element ref="Distribution" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 (1)
TaxJurisdicationCodes nsA:TaxJurisdicationCodes 0 (1)
BasisAmount nsA:BasisAmount 0 (1)
BasisQuantity nsA:BasisQuantity 0 (1)
Calculation nsA:Calculation 0 (1)
Exemption nsA:Exemption 0 (1)
Description nsA:Description 0 unbounded
TaxAuthorityAmount nsA:TaxAuthorityAmount 0 (1)
Amount nsA:Amount 0 (1)
Distribution nsA:Distribution 0 unbounded
UserArea nsA:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
type nsA:type Optional
Collapse Derivation Tree:
Collapse References:
nsA:DistributedTax
