Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: DistributionType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: Components.xsd
Abstract
Documentation:
A distribution identifies how monetary amounts are distributed accross an organization.

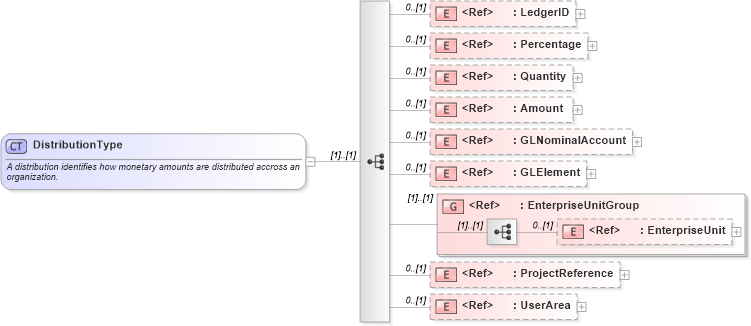

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into ProjectReference in schema components_xsd Drilldown into EnterpriseUnit in schema components_xsd Drilldown into EnterpriseUnitGroup in schema components_xsd Drilldown into GLElement in schema components_xsd Drilldown into GLNominalAccount in schema components_xsd Drilldown into Amount in schema fields_xsd Drilldown into Quantity in schema fields_xsd Drilldown into Percentage in schema fields_xsd Drilldown into LedgerID in schema fields_xsdXSD Diagram of DistributionType in schema components_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="DistributionType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">A distribution identifies how monetary amounts are distributed accross an organization.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="LedgerID" minOccurs="0" />
        <xsd:element ref="Percentage" minOccurs="0" />
        <xsd:element ref="Quantity" minOccurs="0" />
        <xsd:element ref="Amount" minOccurs="0" />
        <xsd:element ref="GLNominalAccount" minOccurs="0" />
        <xsd:element ref="GLElement" minOccurs="0" />
        <xsd:group ref="EnterpriseUnitGroup" />
        <xsd:element ref="ProjectReference" minOccurs="0" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LedgerID nsA:LedgerID 0 (1)
Percentage nsA:Percentage 0 (1)
Quantity nsA:Quantity 0 (1)
Amount nsA:Amount 0 (1)
GLNominalAccount nsA:GLNominalAccount 0 (1)
GLElement nsA:GLElement 0 (1)
EnterpriseUnit nsA:EnterpriseUnit 0 (1)
ProjectReference nsA:ProjectReference 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:EnterpriseUnitGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:Distribution
