Docs for schema item DocumentIDsGroup in Open Applications Group (OAGIS)

Documentation for Open Applications Group (OAGIS)

Definition Type:	Group
Name:	DocumentIDsGroup
Namespace:	http://www.openapplications.org/oagis/9
Containing Schema:	Components.xsd
Documentation:	Provides the Identifier(s) of the document being communicated. Uniquily identifies a Document within an organization. Typically there is only an ID for a document within one system. However, with the use of different business applications there maybe different ids assigned to the same document within an organization from the different systems and in the case of B2B transactions different businesses may have different Identifiers for the same document. This construct is designed to allow for these different identifications.

XSD Schema Diagram:

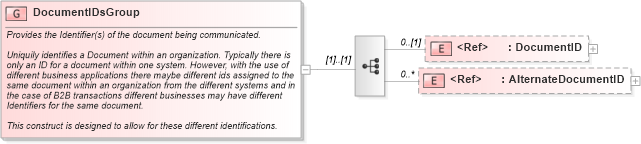

XSD Diagram of DocumentIDsGroup in schema components_xsd (Open Applications Group (OAGIS))

XSD Schema Code:

<xsd:group name="DocumentIDsGroup">
    <xsd:annotation>
        <xsd:documentation>Provides the Identifier(s) of the document being communicated.

Uniquily identifies a Document within an organization. Typically there is only an ID for a document within one system. However, with the use of different business applications there maybe different ids assigned to the same document within an organization from the different systems and in the case of B2B transactions different businesses may have different Identifiers for the same document.

This construct is designed to allow for these different identifications.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="DocumentID" minOccurs="0" />
        <xsd:element ref="AlternateDocumentID" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:group>

Child Elements:

Name	Type	Min Occurs	Max Occurs
DocumentID	nsA:DocumentID	0	(1)
AlternateDocumentID	nsA:AlternateDocumentID	0	unbounded
