Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: EmbeddedData
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:BinaryObjectType
Containing Schema: Fields.xsd
Abstract
Documentation:
Allows the data to be embedded directly into the BOD instance.

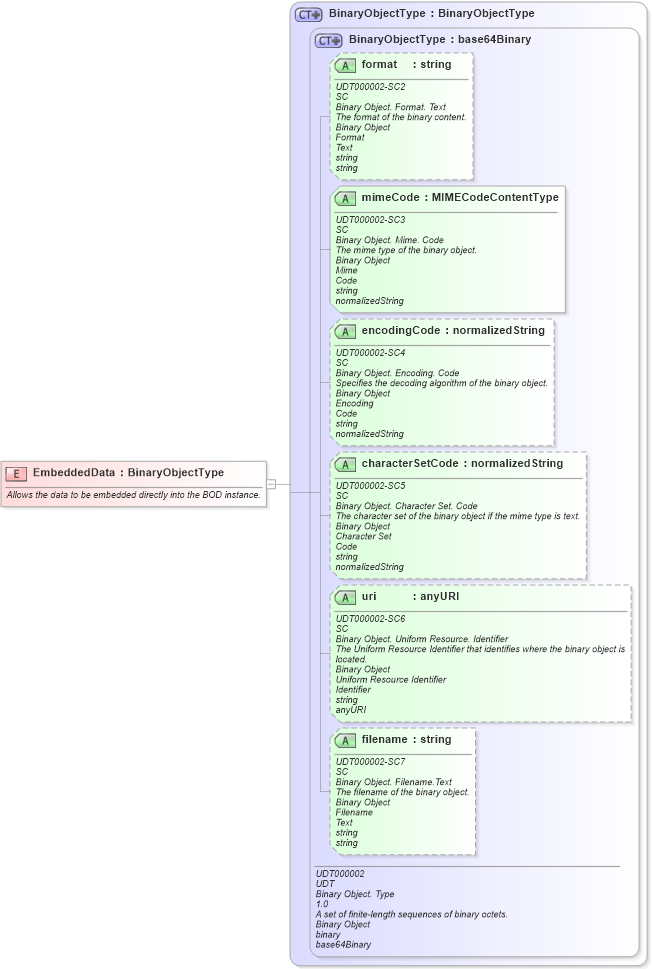

Collapse XSD Schema Diagram:
Drilldown into filename in schema unqualifieddatatypes_xsd Drilldown into uri in schema unqualifieddatatypes_xsd Drilldown into characterSetCode in schema unqualifieddatatypes_xsd Drilldown into encodingCode in schema unqualifieddatatypes_xsd Drilldown into mimeCode in schema unqualifieddatatypes_xsd Drilldown into format in schema unqualifieddatatypes_xsd Drilldown into BinaryObjectType in schema unqualifieddatatypes_xsd Drilldown into BinaryObjectType in schema fields_xsdXSD Diagram of EmbeddedData in schema fields_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="EmbeddedData" type="BinaryObjectType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">Allows the data to be embedded directly into the BOD instance.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
format udt:format Optional
mimeCode udt:mimeCode Required
encodingCode udt:encodingCode Optional
characterSetCode udt:characterSetCode Optional
uri udt:uri Optional
filename udt:filename Optional
Collapse Derivation Tree:
