Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: EngineeringChangeReviewer
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:EngineeringChangeReviewType
Containing Schema: EngineeringChangeOrder.xsd
Abstract
Documentation:
Describes the reviewers of the engineering change. It is their responsiblity to either approve or reject the engineering change document.

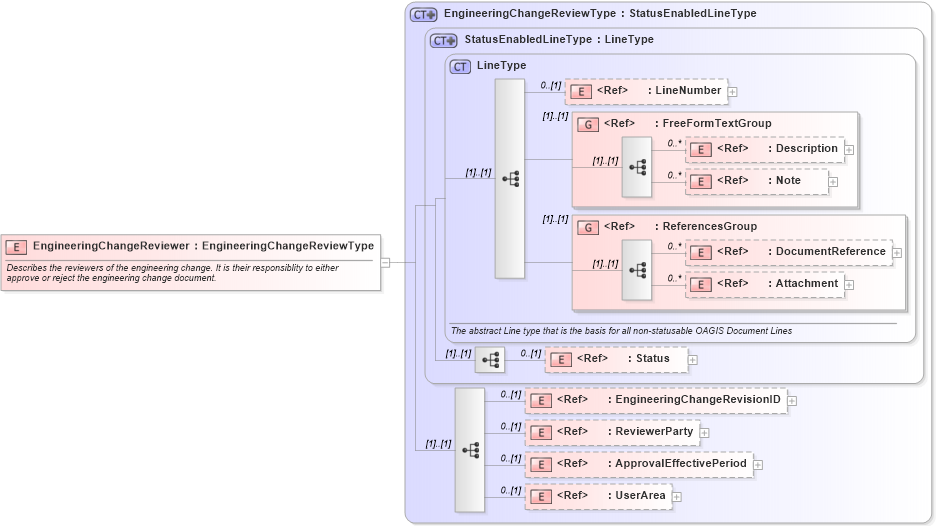

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into ApprovalEffectivePeriod in schema components_xsd Drilldown into ReviewerParty in schema components_xsd Drilldown into EngineeringChangeRevisionID in schema fields_xsd Drilldown into Status in schema components_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into LineNumber in schema fields_xsd Drilldown into LineType in schema components_xsd Drilldown into StatusEnabledLineType in schema components_xsd Drilldown into EngineeringChangeReviewType in schema engineeringchangeorder_xsdXSD Diagram of EngineeringChangeReviewer in schema engineeringchangeorder_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="EngineeringChangeReviewer" type="EngineeringChangeReviewType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">Describes the reviewers of the engineering change. It is their responsiblity to either approve or reject the engineering change document.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumber nsA:LineNumber 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
Status nsA:Status 0 (1)
EngineeringChangeRevisionID nsA:EngineeringChangeRevisionID 0 (1)
ReviewerParty nsA:ReviewerParty 0 (1)
ApprovalEffectivePeriod nsA:ApprovalEffectivePeriod 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
Collapse Derivation Tree:
