Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: EngineeringChangeRevisionType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:StatusEnabledLineType
Containing Schema: EngineeringChangeOrder.xsd
Abstract

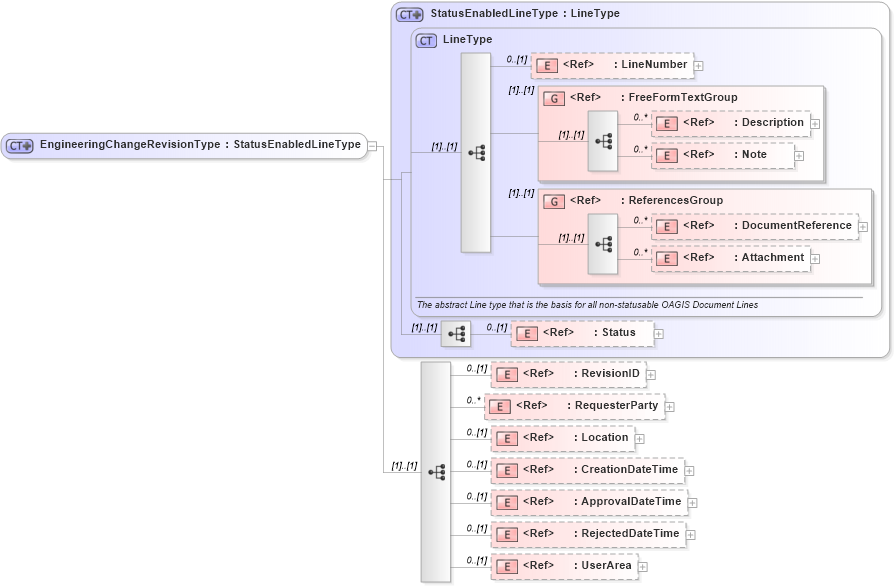

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into RejectedDateTime in schema fields_xsd Drilldown into ApprovalDateTime in schema fields_xsd Drilldown into CreationDateTime in schema meta_xsd Drilldown into Location in schema components_xsd Drilldown into RequesterParty in schema components_xsd Drilldown into RevisionID in schema fields_xsd Drilldown into Status in schema components_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into LineNumber in schema fields_xsd Drilldown into LineType in schema components_xsd Drilldown into StatusEnabledLineType in schema components_xsdXSD Diagram of EngineeringChangeRevisionType in schema engineeringchangeorder_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="EngineeringChangeRevisionType">
    <xsd:complexContent>
        <xsd:extension base="StatusEnabledLineType">
            <xsd:sequence>
                <xsd:element ref="RevisionID" minOccurs="0" />
                <xsd:element ref="RequesterParty" minOccurs="0" maxOccurs="unbounded">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Identifies who proposed this revision. This maybe someone with in the company or from someone in the companies Supply Chain.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="Location" minOccurs="0" />
                <xsd:element ref="CreationDateTime" minOccurs="0" />
                <xsd:element ref="ApprovalDateTime" minOccurs="0" />
                <xsd:element ref="RejectedDateTime" minOccurs="0" />
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumber nsA:LineNumber 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
Status nsA:Status 0 (1)
RevisionID nsA:RevisionID 0 (1)
RequesterParty nsA:RequesterParty 0 unbounded
Location nsA:Location 0 (1)
CreationDateTime nsA:CreationDateTime 0 (1)
ApprovalDateTime nsA:ApprovalDateTime 0 (1)
RejectedDateTime nsA:RejectedDateTime 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:EngineeringChangeRevision
