Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: ExchangeRate
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:CurrencyExchangeRateType
Containing Schema: Components.xsd
Abstract
Documentation:
ExchangeRate is the conversion from one one currency to another currency Identifing the conversion factor and the source in which it was obtained, the date in which the conversion factor was set, and the effective period in which it is to be used.

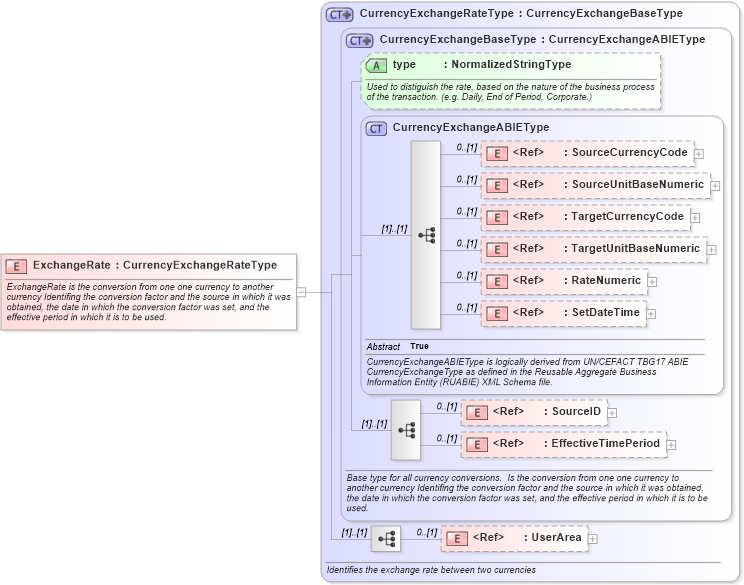

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into EffectiveTimePeriod in schema components_xsd Drilldown into SourceID in schema fields_xsd Drilldown into SetDateTime in schema fields_xsd Drilldown into RateNumeric in schema fields_xsd Drilldown into TargetUnitBaseNumeric in schema fields_xsd Drilldown into TargetCurrencyCode in schema fields_xsd Drilldown into SourceUnitBaseNumeric in schema fields_xsd Drilldown into SourceCurrencyCode in schema fields_xsd Drilldown into CurrencyExchangeABIEType in schema components_xsd Drilldown into type in schema components_xsd Drilldown into CurrencyExchangeBaseType in schema components_xsd Drilldown into CurrencyExchangeRateType in schema components_xsdXSD Diagram of ExchangeRate in schema components_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="ExchangeRate" type="CurrencyExchangeRateType">
    <xsd:annotation>
        <xsd:documentation>ExchangeRate is the conversion from one one currency to another currency Identifing the conversion factor and the source in which it was obtained, the date in which the conversion factor was set, and the effective period in which it is to be used.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SourceCurrencyCode nsA:SourceCurrencyCode 0 (1)
SourceUnitBaseNumeric nsA:SourceUnitBaseNumeric 0 (1)
TargetCurrencyCode nsA:TargetCurrencyCode 0 (1)
TargetUnitBaseNumeric nsA:TargetUnitBaseNumeric 0 (1)
RateNumeric nsA:RateNumeric 0 (1)
SetDateTime nsA:SetDateTime 0 (1)
SourceID nsA:SourceID 0 (1)
EffectiveTimePeriod nsA:EffectiveTimePeriod 0 (1)
UserArea nsA:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
type nsA:type (Optional)
Collapse Derivation Tree:
