Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: FieldValue
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:PropertyType
Containing Schema: Field.xsd
Abstract
Documentation:
Represents the field values, name and type of the information that needs to be communicated.

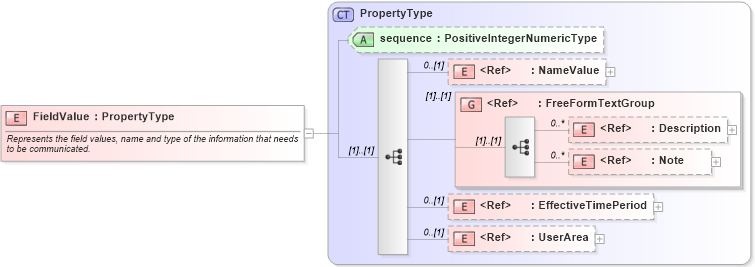

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into EffectiveTimePeriod in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into NameValue in schema components_xsd Drilldown into sequence in schema components_xsd Drilldown into PropertyType in schema components_xsdXSD Diagram of FieldValue in schema field_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="FieldValue" type="PropertyType">
    <xsd:annotation>
        <xsd:documentation>Represents the field values, name and type of the information that needs to be communicated.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
NameValue nsA:NameValue 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
EffectiveTimePeriod nsA:EffectiveTimePeriod 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
sequence nsA:sequence Optional
Collapse Derivation Tree:
