Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: FinalAgentFinancialParty
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:FinancialPartyType
Containing Schema: Components.xsd
Abstract
Documentation:
Financial institution that receives the payment transaction on behalf of an account owner, and posts the transaction to the account.

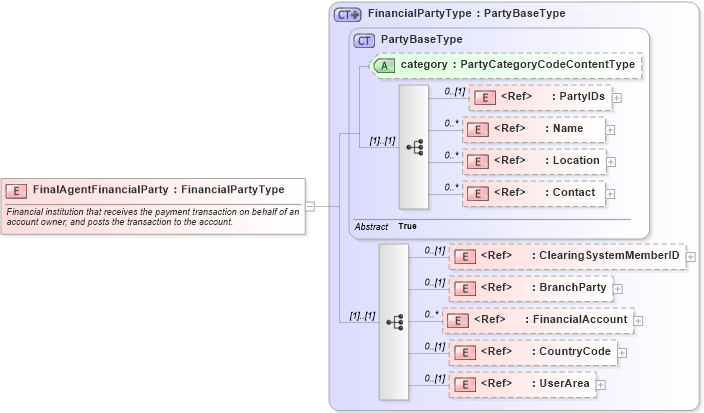

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into CountryCode in schema fields_xsd Drilldown into FinancialAccount in schema components_xsd Drilldown into BranchParty in schema components_xsd Drilldown into ClearingSystemMemberID in schema fields_xsd Drilldown into Contact in schema components_xsd Drilldown into Location in schema components_xsd Drilldown into Name in schema fields_xsd Drilldown into PartyIDs in schema components_xsd Drilldown into category in schema components_xsd Drilldown into PartyBaseType in schema components_xsd Drilldown into FinancialPartyType in schema components_xsdXSD Diagram of FinalAgentFinancialParty in schema components_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="FinalAgentFinancialParty" type="FinancialPartyType">
    <xsd:annotation>
        <xsd:documentation>Financial institution that receives the payment transaction on behalf of an account owner, and posts the transaction to the account.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PartyIDs nsA:PartyIDs 0 (1)
Name nsA:Name 0 unbounded
Location nsA:Location 0 unbounded
Contact nsA:Contact 0 unbounded
ClearingSystemMemberID nsA:ClearingSystemMemberID 0 (1)
BranchParty nsA:BranchParty 0 (1)
FinancialAccount nsA:FinancialAccount 0 unbounded
CountryCode nsA:CountryCode 0 (1)
UserArea nsA:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
category nsA:category (Optional)
Collapse Derivation Tree:
