Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: FinancialAccount
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:AccountInformationType
Containing Schema: Components.xsd
Abstract

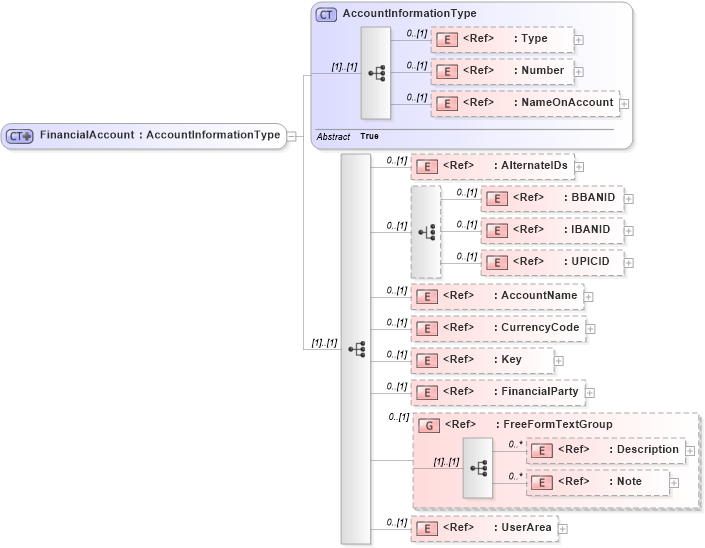

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into FinancialParty in schema components_xsd Drilldown into Key in schema fields_xsd Drilldown into CurrencyCode in schema fields_xsd Drilldown into AccountName in schema fields_xsd Drilldown into UPICID in schema fields_xsd Drilldown into IBANID in schema fields_xsd Drilldown into BBANID in schema fields_xsd Drilldown into AlternateIDs in schema components_xsd1 Drilldown into NameOnAccount in schema fields_xsd Drilldown into Number in schema fields_xsd Drilldown into Type in schema fields_xsd Drilldown into AccountInformationType in schema components_xsdXSD Diagram of FinancialAccount in schema components_xsd1 (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="FinancialAccount">
    <xsd:complexContent>
        <xsd:extension base="AccountInformationType">
            <xsd:sequence>
                <xsd:element ref="AlternateIDs" minOccurs="0" />
                <xsd:choice minOccurs="0">
                    <xsd:element ref="BBANID" minOccurs="0" />
                    <xsd:element ref="IBANID" minOccurs="0" />
                    <xsd:element ref="UPICID" minOccurs="0" />
                </xsd:choice>
                <xsd:element ref="AccountName" minOccurs="0" />
                <xsd:element ref="CurrencyCode" minOccurs="0" />
                <xsd:element ref="Key" minOccurs="0" />
                <xsd:element ref="FinancialParty" minOccurs="0" />
                <xsd:group ref="FreeFormTextGroup" minOccurs="0" />
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Type nsA:Type 0 (1)
Number nsA:Number 0 (1)
NameOnAccount nsA:NameOnAccount 0 (1)
AlternateIDs nsA:AlternateIDs 0 (1)
BBANID nsA:BBANID 0 (1)
IBANID nsA:IBANID 0 (1)
UPICID nsA:UPICID 0 (1)
AccountName nsA:AccountName 0 (1)
CurrencyCode nsA:CurrencyCode 0 (1)
Key nsA:Key 0 (1)
FinancialParty nsA:FinancialParty 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:FreeFormTextGroup 0 (1)
Collapse Derivation Tree:
