Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: FinancialAccountType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: Components.xsd
Abstract

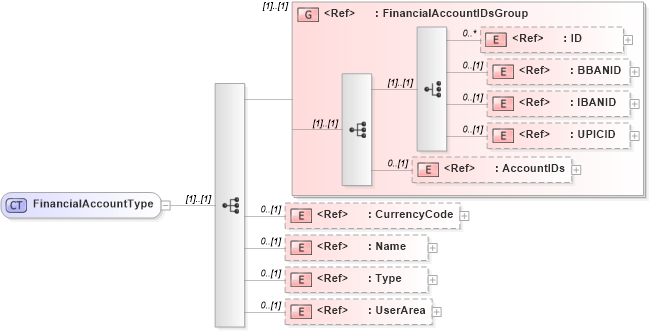

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Type in schema fields_xsd Drilldown into Name in schema fields_xsd Drilldown into CurrencyCode in schema fields_xsd Drilldown into AccountIDs in schema components_xsd Drilldown into UPICID in schema fields_xsd Drilldown into IBANID in schema fields_xsd Drilldown into BBANID in schema fields_xsd Drilldown into ID in schema fields_xsd Drilldown into FinancialAccountIDsGroup in schema components_xsdXSD Diagram of FinancialAccountType in schema components_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="FinancialAccountType">
    <xsd:sequence>
        <xsd:group ref="FinancialAccountIDsGroup" />
        <xsd:element ref="CurrencyCode" minOccurs="0" />
        <xsd:element ref="Name" minOccurs="0" />
        <xsd:element ref="Type" minOccurs="0" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 unbounded
BBANID nsA:BBANID 0 (1)
IBANID nsA:IBANID 0 (1)
UPICID nsA:UPICID 0 (1)
AccountIDs nsA:AccountIDs 0 (1)
CurrencyCode nsA:CurrencyCode 0 (1)
Name nsA:Name 0 (1)
Type nsA:Type 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:FinancialAccountIDsGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:FinancialAccount
