Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: FinancingBaseType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: CRMComponents.xsd
Abstract

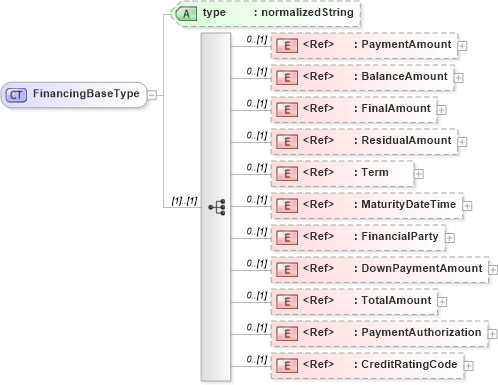

Collapse XSD Schema Diagram:
Drilldown into CreditRatingCode in schema fields_xsd Drilldown into PaymentAuthorization in schema components_xsd Drilldown into TotalAmount in schema fields_xsd Drilldown into DownPaymentAmount in schema fields_xsd Drilldown into FinancialParty in schema components_xsd Drilldown into MaturityDateTime in schema fields_xsd Drilldown into Term in schema components_xsd Drilldown into ResidualAmount in schema fields_xsd Drilldown into FinalAmount in schema fields_xsd Drilldown into BalanceAmount in schema fields_xsd Drilldown into PaymentAmount in schema fields_xsd Drilldown into type in schema crmcomponents_xsdXSD Diagram of FinancingBaseType in schema crmcomponents_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="FinancingBaseType">
    <xsd:sequence>
        <xsd:element ref="PaymentAmount" minOccurs="0" />
        <xsd:element ref="BalanceAmount" minOccurs="0" />
        <xsd:element ref="FinalAmount" minOccurs="0" />
        <xsd:element ref="ResidualAmount" minOccurs="0" />
        <xsd:element ref="Term" minOccurs="0" />
        <xsd:element ref="MaturityDateTime" minOccurs="0" />
        <xsd:element ref="FinancialParty" minOccurs="0" />
        <xsd:element ref="DownPaymentAmount" minOccurs="0" />
        <xsd:element ref="TotalAmount" minOccurs="0" />
        <xsd:element ref="PaymentAuthorization" minOccurs="0" />
        <xsd:element ref="CreditRatingCode" minOccurs="0" />
    </xsd:sequence>
    <xsd:attribute name="type" type="xsd:normalizedString" use="optional" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PaymentAmount nsA:PaymentAmount 0 (1)
BalanceAmount nsA:BalanceAmount 0 (1)
FinalAmount nsA:FinalAmount 0 (1)
ResidualAmount nsA:ResidualAmount 0 (1)
Term nsA:Term 0 (1)
MaturityDateTime nsA:MaturityDateTime 0 (1)
FinancialParty nsA:FinancialParty 0 (1)
DownPaymentAmount nsA:DownPaymentAmount 0 (1)
TotalAmount nsA:TotalAmount 0 (1)
PaymentAuthorization nsA:PaymentAuthorization 0 (1)
CreditRatingCode nsA:CreditRatingCode 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
type nsA:type Optional
Collapse Derivation Tree:
Collapse References:
nsA:FinancingType
