Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: FirstAgentInstruction
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:FirstAgentInstructionType
Containing Schema: Components.xsd
Abstract
Documentation:
Further information related to the processing of the payment instruction, which may need to be acted upon by the first agent, depending on agreement between customer and the first agent. The instruction can relate to a level of service between the customer and the first agent, or can be information required by the first agent.

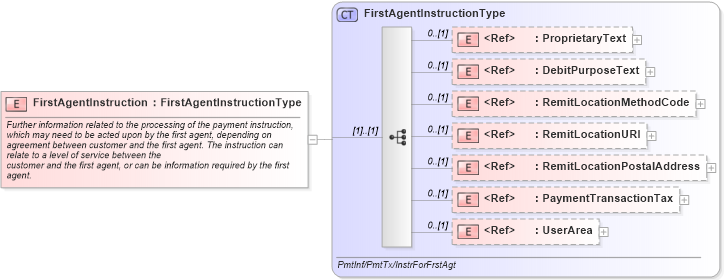

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into PaymentTransactionTax in schema components_xsd1 Drilldown into RemitLocationPostalAddress in schema components_xsd Drilldown into RemitLocationURI in schema fields_xsd Drilldown into RemitLocationMethodCode in schema fields_xsd Drilldown into DebitPurposeText in schema fields_xsd Drilldown into ProprietaryText in schema fields_xsd Drilldown into FirstAgentInstructionType in schema components_xsd1XSD Diagram of FirstAgentInstruction in schema components_xsd1 (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="FirstAgentInstruction" type="FirstAgentInstructionType">
    <xsd:annotation>
        <xsd:documentation>Further information related to the processing of the payment instruction, which may need to be acted upon by the first agent, depending on agreement between customer and the first agent. The instruction can relate to a level of service between the
customer and the first agent, or can be information required by the first agent.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ProprietaryText nsA:ProprietaryText 0 (1)
DebitPurposeText nsA:DebitPurposeText 0 (1)
RemitLocationMethodCode nsA:RemitLocationMethodCode 0 (1)
RemitLocationURI nsA:RemitLocationURI 0 (1)
RemitLocationPostalAddress nsA:RemitLocationPostalAddress 0 (1)
PaymentTransactionTax nsA:PaymentTransactionTax 0 (1)
UserArea nsA:UserArea 0 (1)
Collapse Derivation Tree:
