Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: IdentifierType
Namespace: urn:un:unece:uncefact:data:documentation:CoreComponentTypeSchemaModule:1.0
Type: normalizedString:http://www.w3.org/2001/XMLSchema
Containing Schema: CoreComponentTypes.xsd
Abstract
Documentation:
UNDT000011 CCT Identifier. Type 1.0 A character string to identify and distinguish uniquely, one instance of an object in an identification scheme from all other objects in the same scheme together with relevant supplementary information. Identifier string

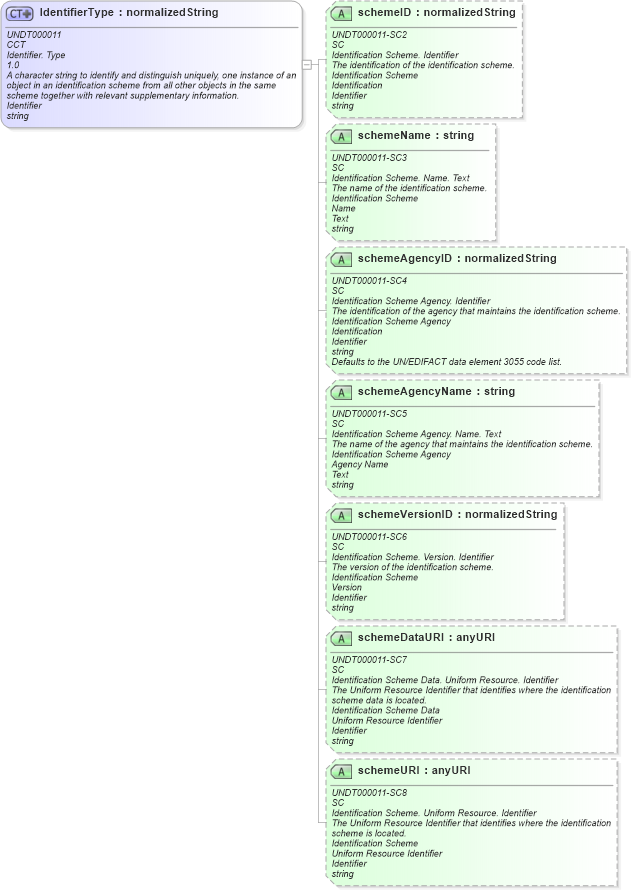

Collapse XSD Schema Diagram:
Drilldown into schemeURI in schema corecomponenttypes_xsd Drilldown into schemeDataURI in schema corecomponenttypes_xsd Drilldown into schemeVersionID in schema corecomponenttypes_xsd Drilldown into schemeAgencyName in schema corecomponenttypes_xsd Drilldown into schemeAgencyID in schema corecomponenttypes_xsd Drilldown into schemeName in schema corecomponenttypes_xsd Drilldown into schemeID in schema corecomponenttypes_xsdXSD Diagram of IdentifierType in schema corecomponenttypes_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="IdentifierType">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">
            <ccts:UniqueID xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">UNDT000011</ccts:UniqueID>
            <ccts:CategoryCode xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">CCT</ccts:CategoryCode>
            <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">Identifier. Type</ccts:DictionaryEntryName>
            <ccts:VersionID xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">1.0</ccts:VersionID>
            <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">A character string to identify and distinguish uniquely, one instance of an object in an identification scheme from all other objects in the same scheme together with relevant supplementary information.</ccts:Definition>
            <ccts:RepresentationTermName xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">Identifier</ccts:RepresentationTermName>
            <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">string</ccts:PrimitiveType>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:simpleContent>
        <xsd:extension base="xsd:normalizedString">
            <xsd:attribute name="schemeID" type="xsd:normalizedString" use="optional">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">
                        <ccts:UniqueID xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">UNDT000011-SC2</ccts:UniqueID>
                        <ccts:CategoryCode xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">SC</ccts:CategoryCode>
                        <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">Identification Scheme. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">The identification of the identification scheme.</ccts:Definition>
                        <ccts:ObjectClass xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">Identification Scheme</ccts:ObjectClass>
                        <ccts:PropertyTermName xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">Identification</ccts:PropertyTermName>
                        <ccts:RepresentationTermName xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">Identifier</ccts:RepresentationTermName>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">string</ccts:PrimitiveType>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="schemeName" type="xsd:string" use="optional">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">
                        <ccts:UniqueID xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">UNDT000011-SC3</ccts:UniqueID>
                        <ccts:CategoryCode xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">SC</ccts:CategoryCode>
                        <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">Identification Scheme. Name. Text</ccts:DictionaryEntryName>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">The name of the identification scheme.</ccts:Definition>
                        <ccts:ObjectClass xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">Identification Scheme</ccts:ObjectClass>
                        <ccts:PropertyTermName xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">Name</ccts:PropertyTermName>
                        <ccts:RepresentationTermName xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">Text</ccts:RepresentationTermName>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">string</ccts:PrimitiveType>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="schemeAgencyID" type="xsd:normalizedString" use="optional">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">
                        <ccts:UniqueID xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">UNDT000011-SC4</ccts:UniqueID>
                        <ccts:CategoryCode xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">SC</ccts:CategoryCode>
                        <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">Identification Scheme Agency. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">The identification of the agency that maintains the identification scheme.</ccts:Definition>
                        <ccts:ObjectClass xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">Identification Scheme Agency</ccts:ObjectClass>
                        <ccts:PropertyTermName xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">Identification</ccts:PropertyTermName>
                        <ccts:RepresentationTermName xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">Identifier</ccts:RepresentationTermName>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">string</ccts:PrimitiveType>
                        <ccts:UsageRule xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">Defaults to the UN/EDIFACT data element 3055 code list.</ccts:UsageRule>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="schemeAgencyName" type="xsd:string" use="optional">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">
                        <ccts:UniqueID xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">UNDT000011-SC5</ccts:UniqueID>
                        <ccts:CategoryCode xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">SC</ccts:CategoryCode>
                        <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">Identification Scheme Agency. Name. Text</ccts:DictionaryEntryName>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">The name of the agency that maintains the identification scheme.</ccts:Definition>
                        <ccts:ObjectClass xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">Identification Scheme Agency</ccts:ObjectClass>
                        <ccts:PropertyTermName xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">Agency Name</ccts:PropertyTermName>
                        <ccts:RepresentationTermName xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">Text</ccts:RepresentationTermName>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">string</ccts:PrimitiveType>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="schemeVersionID" type="xsd:normalizedString" use="optional">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">
                        <ccts:UniqueID xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">UNDT000011-SC6</ccts:UniqueID>
                        <ccts:CategoryCode xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">SC</ccts:CategoryCode>
                        <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">Identification Scheme. Version. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">The version of the identification scheme.</ccts:Definition>
                        <ccts:ObjectClass xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">Identification Scheme</ccts:ObjectClass>
                        <ccts:PropertyTermName xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">Version</ccts:PropertyTermName>
                        <ccts:RepresentationTermName xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">Identifier</ccts:RepresentationTermName>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">string</ccts:PrimitiveType>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="schemeDataURI" type="xsd:anyURI" use="optional">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">
                        <ccts:UniqueID xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">UNDT000011-SC7</ccts:UniqueID>
                        <ccts:CategoryCode xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">SC</ccts:CategoryCode>
                        <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">Identification Scheme Data. Uniform Resource. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">The Uniform Resource Identifier that identifies where the identification scheme data is located.</ccts:Definition>
                        <ccts:ObjectClass xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">Identification Scheme Data</ccts:ObjectClass>
                        <ccts:PropertyTermName xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">Uniform Resource Identifier</ccts:PropertyTermName>
                        <ccts:RepresentationTermName xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">Identifier</ccts:RepresentationTermName>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">string</ccts:PrimitiveType>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="schemeURI" type="xsd:anyURI" use="optional">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">
                        <ccts:UniqueID xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">UNDT000011-SC8</ccts:UniqueID>
                        <ccts:CategoryCode xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">SC</ccts:CategoryCode>
                        <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">Identification Scheme. Uniform Resource. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">The Uniform Resource Identifier that identifies where the identification scheme is located.</ccts:Definition>
                        <ccts:ObjectClass xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">Identification Scheme</ccts:ObjectClass>
                        <ccts:PropertyTermName xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">Uniform Resource Identifier</ccts:PropertyTermName>
                        <ccts:RepresentationTermName xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">Identifier</ccts:RepresentationTermName>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:1.0">string</ccts:PrimitiveType>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
        </xsd:extension>
    </xsd:simpleContent>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
schemeID nsB:schemeID Optional
schemeName nsB:schemeName Optional
schemeAgencyID nsB:schemeAgencyID Optional
schemeAgencyName nsB:schemeAgencyName Optional
schemeVersionID nsB:schemeVersionID Optional
schemeDataURI nsB:schemeDataURI Optional
schemeURI nsB:schemeURI Optional
