Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: IdentifierType
Namespace: http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1
Type: normalizedString:http://www.w3.org/2001/XMLSchema
Containing Schema: UnqualifiedDataTypes.xsd
Abstract
Documentation:
UDT0000011 UDT Identifier. Type 1.0 A character string to identify and distinguish uniquely, one instance of an object in an identification scheme from all other objects in the same scheme together with relevant supplementary information. Identifier string normalizedString Other supplementary components in the CCT are captured as part of the token and name for the schema module containing the identifer list and thus, are not declared as attributes.

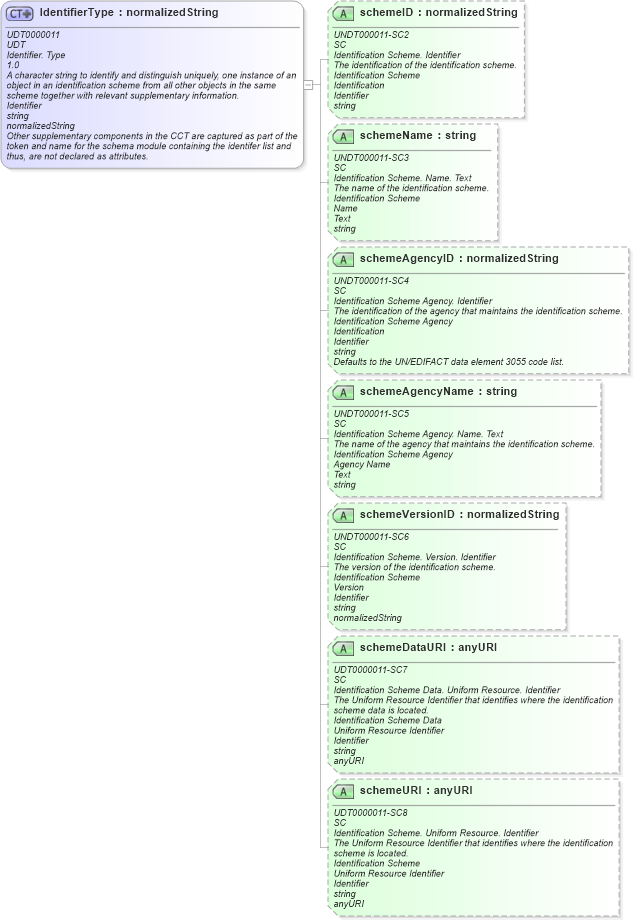

Collapse XSD Schema Diagram:
Drilldown into schemeURI in schema unqualifieddatatypes_xsd Drilldown into schemeDataURI in schema unqualifieddatatypes_xsd Drilldown into schemeVersionID in schema unqualifieddatatypes_xsd Drilldown into schemeAgencyName in schema unqualifieddatatypes_xsd Drilldown into schemeAgencyID in schema unqualifieddatatypes_xsd Drilldown into schemeName in schema unqualifieddatatypes_xsd Drilldown into schemeID in schema unqualifieddatatypes_xsdXSD Diagram of IdentifierType in schema unqualifieddatatypes_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="IdentifierType">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">
            <ccts:UniqueID xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">UDT0000011</ccts:UniqueID>
            <ccts:CategoryCode xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">UDT</ccts:CategoryCode>
            <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Identifier. Type</ccts:DictionaryEntryName>
            <ccts:VersionID xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">1.0</ccts:VersionID>
            <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">A character string to identify and distinguish uniquely, one instance of an object in an identification scheme from all other objects in the same scheme together with relevant supplementary information.</ccts:Definition>
            <ccts:RepresentationTermName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Identifier</ccts:RepresentationTermName>
            <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">string</ccts:PrimitiveType>
            <xsd:BuiltinType>normalizedString</xsd:BuiltinType>
            <ccts:UsageRule xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Other supplementary components in the CCT are captured as part of the token and name for the schema module containing the identifer list and thus, are not declared as attributes. </ccts:UsageRule>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:simpleContent>
        <xsd:extension base="xsd:normalizedString">
            <xsd:attribute name="schemeID" type="xsd:normalizedString" use="optional">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">
                        <ccts:UniqueID xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">UNDT000011-SC2</ccts:UniqueID>
                        <ccts:CategoryCode xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">SC</ccts:CategoryCode>
                        <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Identification Scheme. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">The identification of the identification scheme.</ccts:Definition>
                        <ccts:ObjectClass xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Identification Scheme</ccts:ObjectClass>
                        <ccts:PropertyTermName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Identification</ccts:PropertyTermName>
                        <ccts:RepresentationTermName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Identifier</ccts:RepresentationTermName>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">string</ccts:PrimitiveType>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="schemeName" type="xsd:string" use="optional">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">
                        <ccts:UniqueID xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">UNDT000011-SC3</ccts:UniqueID>
                        <ccts:CategoryCode xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">SC</ccts:CategoryCode>
                        <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Identification Scheme. Name. Text</ccts:DictionaryEntryName>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">The name of the identification scheme.</ccts:Definition>
                        <ccts:ObjectClass xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Identification Scheme</ccts:ObjectClass>
                        <ccts:PropertyTermName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Name</ccts:PropertyTermName>
                        <ccts:RepresentationTermName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Text</ccts:RepresentationTermName>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">string</ccts:PrimitiveType>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="schemeAgencyID" type="xsd:normalizedString" use="optional">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">
                        <ccts:UniqueID xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">UNDT000011-SC4</ccts:UniqueID>
                        <ccts:CategoryCode xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">SC</ccts:CategoryCode>
                        <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Identification Scheme Agency. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">The identification of the agency that maintains the identification scheme.</ccts:Definition>
                        <ccts:ObjectClass xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Identification Scheme Agency</ccts:ObjectClass>
                        <ccts:PropertyTermName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Identification</ccts:PropertyTermName>
                        <ccts:RepresentationTermName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Identifier</ccts:RepresentationTermName>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">string</ccts:PrimitiveType>
                        <ccts:UsageRule xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Defaults to the UN/EDIFACT data element 3055 code list.</ccts:UsageRule>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="schemeAgencyName" type="xsd:string" use="optional">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">
                        <ccts:UniqueID xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">UNDT000011-SC5</ccts:UniqueID>
                        <ccts:CategoryCode xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">SC</ccts:CategoryCode>
                        <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Identification Scheme Agency. Name. Text</ccts:DictionaryEntryName>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">The name of the agency that maintains the identification scheme.</ccts:Definition>
                        <ccts:ObjectClass xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Identification Scheme Agency</ccts:ObjectClass>
                        <ccts:PropertyTermName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Agency Name</ccts:PropertyTermName>
                        <ccts:RepresentationTermName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Text</ccts:RepresentationTermName>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">string</ccts:PrimitiveType>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="schemeVersionID" type="xsd:normalizedString" use="optional">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">
                        <ccts:UniqueID xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">UNDT000011-SC6</ccts:UniqueID>
                        <ccts:CategoryCode xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">SC</ccts:CategoryCode>
                        <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Identification Scheme. Version. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">The version of the identification scheme.</ccts:Definition>
                        <ccts:ObjectClass xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Identification Scheme</ccts:ObjectClass>
                        <ccts:PropertyTermName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Version</ccts:PropertyTermName>
                        <ccts:RepresentationTermName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Identifier</ccts:RepresentationTermName>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">string</ccts:PrimitiveType>
                        <xsd:BuiltinType>normalizedString</xsd:BuiltinType>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="schemeDataURI" type="xsd:anyURI" use="optional">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">
                        <ccts:UniqueID xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">UDT0000011-SC7</ccts:UniqueID>
                        <ccts:CategoryCode xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">SC</ccts:CategoryCode>
                        <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Identification Scheme Data. Uniform Resource. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">The Uniform Resource Identifier that identifies where the identification scheme data is located.</ccts:Definition>
                        <ccts:ObjectClass xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Identification Scheme Data</ccts:ObjectClass>
                        <ccts:PropertyTermName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Uniform Resource Identifier</ccts:PropertyTermName>
                        <ccts:RepresentationTermName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Identifier</ccts:RepresentationTermName>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">string</ccts:PrimitiveType>
                        <xsd:BuiltinType>anyURI</xsd:BuiltinType>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="schemeURI" type="xsd:anyURI" use="optional">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">
                        <ccts:UniqueID xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">UDT0000011-SC8</ccts:UniqueID>
                        <ccts:CategoryCode xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">SC</ccts:CategoryCode>
                        <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Identification Scheme. Uniform Resource. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">The Uniform Resource Identifier that identifies where the identification scheme is located.</ccts:Definition>
                        <ccts:ObjectClass xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Identification Scheme</ccts:ObjectClass>
                        <ccts:PropertyTermName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Uniform Resource Identifier</ccts:PropertyTermName>
                        <ccts:RepresentationTermName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Identifier</ccts:RepresentationTermName>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">string</ccts:PrimitiveType>
                        <xsd:BuiltinType>anyURI</xsd:BuiltinType>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
        </xsd:extension>
    </xsd:simpleContent>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
schemeID udt:schemeID Optional
schemeName udt:schemeName Optional
schemeAgencyID udt:schemeAgencyID Optional
schemeAgencyName udt:schemeAgencyName Optional
schemeVersionID udt:schemeVersionID Optional
schemeDataURI udt:schemeDataURI Optional
schemeURI udt:schemeURI Optional
Collapse Derivation Tree:
Collapse References:
ram:CarrierAssignedID, rcm:CarrierAssignedID, ram:ConsigneeAssignedID, rcm:ConsigneeAssignedID, ram:ConsignorAssignedID, rcm:ConsignorAssignedID, ram:CountryID, rcm:CountryID, rcm:CountryID, ram:CountrySubDivisionID, rcm:CountrySubDivisionID, ram:EmergencyProcedureID, rcm:EmergencyProcedureID, ram:ExemptionID, ram:FreightForwarderAssignedID, rcm:FreightForwarderAssignedID, ram:HazardClassID, rcm:HazardClassID, ram:ID, ram:ID, ram:ID, ram:ID, ram:ID, ram:ID, ram:ID, ram:ID, ram:ID, ram:ID, ram:ID, ram:ID, ram:ID, ram:ID, ram:ID, ram:ID, ram:ID, ram:ID, ram:ID, ram:ID, ram:ID, ram:ID, ram:ID, ram:ID, ram:ID, ram:ID, ram:ID, ram:ID, rcm:ID, rcm:ID, rcm:ID, ram:ID, rcm:ID, rcm:ID, rcm:ID, rcm:ID, rcm:ID, rcm:ID, rcm:ID, rcm:ID, rcm:ID, rcm:ID, ram:ID, rcm:ID, rcm:ID, rcm:ID, rcm:ID, rcm:ID, rcm:ID, rcm:ID, rcm:ID, rcm:ID, rcm:ID, ram:ID, rcm:ID, rcm:ID, rcm:ID, rcm:ID, rcm:ID, rcm:ID, rcm:ID, rcm:ID, rcm:ID, rcm:ID, ram:ID, rcm:IDram:ID, ram:ID, nsA:IdentifierType, ram:LanguageID, rcm:LanguageID, rcm:MarketID, ram:MarkingID, rcm:MarkingID, ram:MFAGID, rcm:MFAGID, rcm:NationalityID, ram:ReferenceOrderNumberID, ram:RegistrationID, rcm:RegistrationID, ram:RemittanceBankID, ram:RevenueSourceID, ram:SystemID, rcm:SystemID, ram:TREMCardID, rcm:TREMCardID, ram:UNDGID, rcm:UNDGID, ram:UniqueConsignmentReferenceID, rcm:UniqueConsignmentReferenceID, ram:URI, rcm:URI,
