Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: IntermediaryFinancialParty
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:FinancialPartyType
Containing Schema: Components.xsd
Abstract
Documentation:
An agent between the first and final agent. Usage guideline: This information is provided by the initiating party, based on information provided by the creditor or final party. How this information is handled by the first agent will depend on the service level/business practice between initiating party and first agent.

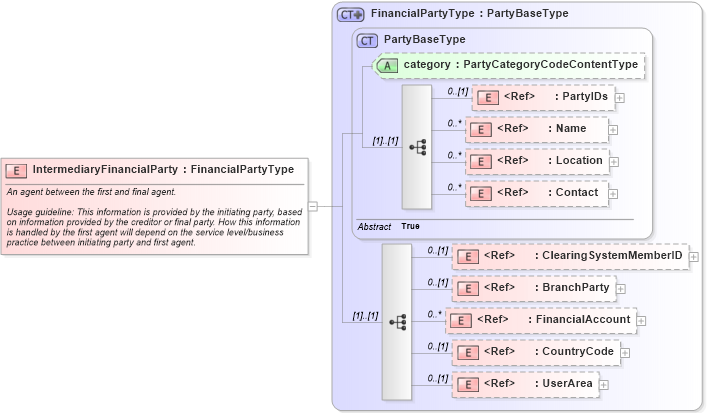

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into CountryCode in schema fields_xsd Drilldown into FinancialAccount in schema components_xsd Drilldown into BranchParty in schema components_xsd Drilldown into ClearingSystemMemberID in schema fields_xsd Drilldown into Contact in schema components_xsd Drilldown into Location in schema components_xsd Drilldown into Name in schema fields_xsd Drilldown into PartyIDs in schema components_xsd Drilldown into category in schema components_xsd Drilldown into PartyBaseType in schema components_xsd Drilldown into FinancialPartyType in schema components_xsdXSD Diagram of IntermediaryFinancialParty in schema components_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="IntermediaryFinancialParty" type="FinancialPartyType">
    <xsd:annotation>
        <xsd:documentation>An agent between the first and final agent.

Usage guideline: This information is provided by the initiating party, based on information provided by the creditor or final party. How this information is handled by the first agent will depend on the service level/business practice between initiating party and first agent.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PartyIDs nsA:PartyIDs 0 (1)
Name nsA:Name 0 unbounded
Location nsA:Location 0 unbounded
Contact nsA:Contact 0 unbounded
ClearingSystemMemberID nsA:ClearingSystemMemberID 0 (1)
BranchParty nsA:BranchParty 0 (1)
FinancialAccount nsA:FinancialAccount 0 unbounded
CountryCode nsA:CountryCode 0 (1)
UserArea nsA:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
category nsA:category (Optional)
Collapse Derivation Tree:
