Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: LocationType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:LocationABIEType
Containing Schema: Components.xsd
Abstract
Collapse XSD Schema Diagram:

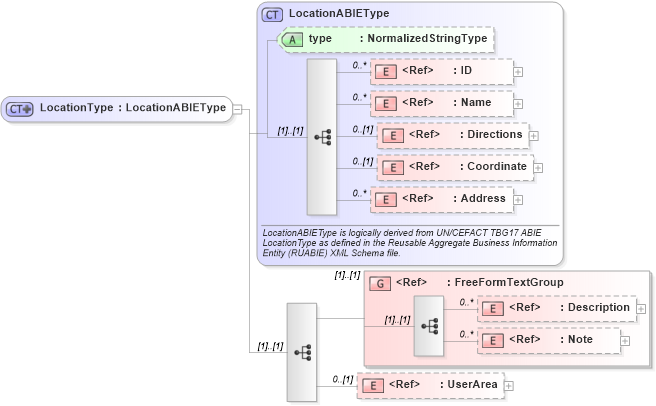

Drilldown into UserArea in schema fields_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into Address in schema components_xsd Drilldown into Coordinate in schema components_xsd Drilldown into Directions in schema fields_xsd Drilldown into Name in schema fields_xsd Drilldown into ID in schema fields_xsd Drilldown into type in schema components_xsd Drilldown into LocationABIEType in schema components_xsdXSD Diagram of LocationType in schema components_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="LocationType">
    <xsd:complexContent>
        <xsd:extension base="LocationABIEType">
            <xsd:sequence>
                <xsd:group ref="FreeFormTextGroup" />
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 unbounded
Name nsA:Name 0 unbounded
Directions nsA:Directions 0 (1)
Coordinate nsA:Coordinate 0 (1)
Address nsA:Address 0 unbounded
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type nsA:type (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:InQueueLocation, nsA:LineFeedLocation, nsA:LoadingLocation, nsA:Location, nsA:OutQueueLocation, nsA:PlaceOfOwnershipTransferLocation, nsA:ReceivingLocation, nsA:ShipToLocation, nsA:Site, nsA:WarehouseLocation, nsA:WorkLocation
