Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: MarketingProgramBaseType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: CRMComponents.xsd
Abstract

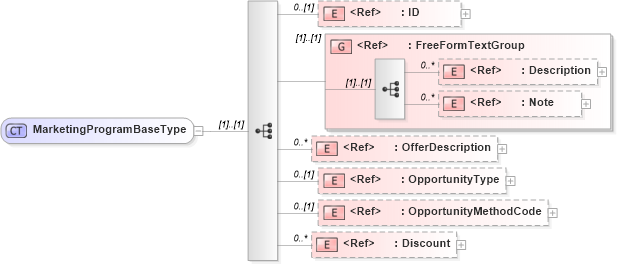

Collapse XSD Schema Diagram:
Drilldown into Discount in schema components_xsd Drilldown into OpportunityMethodCode in schema fields_xsd Drilldown into OpportunityType in schema fields_xsd Drilldown into OfferDescription in schema fields_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into ID in schema fields_xsdXSD Diagram of MarketingProgramBaseType in schema crmcomponents_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="MarketingProgramBaseType">
    <xsd:sequence>
        <xsd:element ref="ID" minOccurs="0" />
        <xsd:group ref="FreeFormTextGroup" />
        <xsd:element ref="OfferDescription" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="OpportunityType" minOccurs="0" />
        <xsd:element ref="OpportunityMethodCode" minOccurs="0" />
        <xsd:element ref="Discount" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
OfferDescription nsA:OfferDescription 0 unbounded
OpportunityType nsA:OpportunityType 0 (1)
OpportunityMethodCode nsA:OpportunityMethodCode 0 (1)
Discount nsA:Discount 0 unbounded
<xs:group> nsA:FreeFormTextGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:MarketingProgramType
