Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: MessageType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: Meta.xsd
Abstract

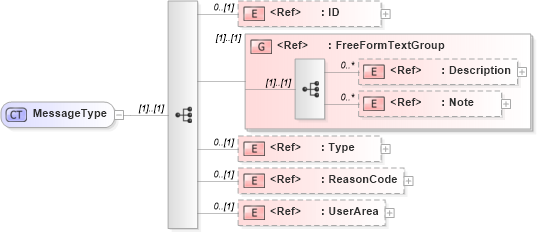

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into ReasonCode in schema fields_xsd Drilldown into Type in schema fields_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into ID in schema fields_xsdXSD Diagram of MessageType in schema meta_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="MessageType">
    <xsd:sequence>
        <xsd:element ref="ID" minOccurs="0" />
        <xsd:group ref="FreeFormTextGroup" />
        <xsd:element ref="Type" minOccurs="0" />
        <xsd:element ref="ReasonCode" minOccurs="0" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
Type nsA:Type 0 (1)
ReasonCode nsA:ReasonCode 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:ErrorProcessMessage, nsA:Message, nsA:WarningProcessMessage
