Definition Type: ComplexType
Name: NonFinancialInstitutionIdentification1
Namespace: urn:swift:xsd:$pain.002.001.01
Containing Schema: pain.002.001.01.xsd
Abstract

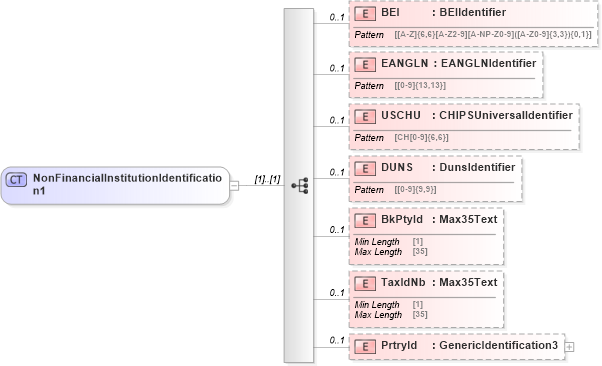

Collapse XSD Schema Diagram:
Drilldown into PrtryId in schema pain_002_001_01_xsd Drilldown into TaxIdNb in schema pain_002_001_01_xsd Drilldown into BkPtyId in schema pain_002_001_01_xsd Drilldown into DUNS in schema pain_002_001_01_xsd Drilldown into USCHU in schema pain_002_001_01_xsd Drilldown into EANGLN in schema pain_002_001_01_xsd Drilldown into BEI in schema pain_002_001_01_xsdXSD Diagram of NonFinancialInstitutionIdentification1 in schema pain_002_001_01_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xs:complexType name="NonFinancialInstitutionIdentification1">
    <xs:sequence>
        <xs:element name="BEI" type="BEIIdentifier" minOccurs="0" maxOccurs="1" />
        <xs:element name="EANGLN" type="EANGLNIdentifier" minOccurs="0" maxOccurs="1" />
        <xs:element name="USCHU" type="CHIPSUniversalIdentifier" minOccurs="0" maxOccurs="1" />
        <xs:element name="DUNS" type="DunsIdentifier" minOccurs="0" maxOccurs="1" />
        <xs:element name="BkPtyId" type="Max35Text" minOccurs="0" maxOccurs="1" />
        <xs:element name="TaxIdNb" type="Max35Text" minOccurs="0" maxOccurs="1" />
        <xs:element name="PrtryId" type="GenericIdentification3" minOccurs="0" maxOccurs="1" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BEI ist:BEI 0 1
EANGLN ist:EANGLN 0 1
USCHU ist:USCHU 0 1
DUNS ist:DUNS 0 1
BkPtyId ist:BkPtyId 0 1
TaxIdNb ist:TaxIdNb 0 1
PrtryId ist:PrtryId 0 1
Collapse Derivation Tree:
  • NonFinancialInstitutionIdentification1
Collapse References:
ist:OrgId
