Definition Type: ComplexType
Name: OperationAllocationType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: ManufacturingComponents.xsd
Abstract

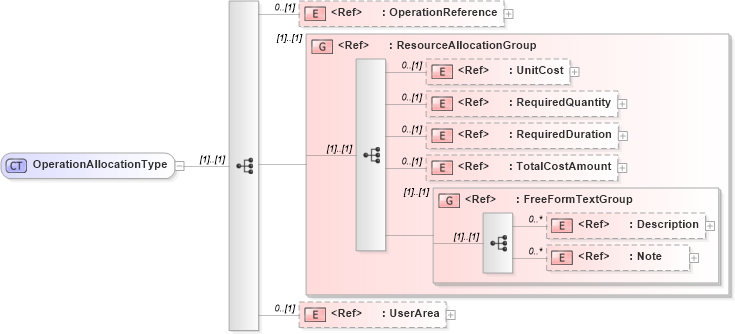

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into TotalCostAmount in schema fields_xsd Drilldown into RequiredDuration in schema fields_xsd Drilldown into RequiredQuantity in schema fields_xsd Drilldown into UnitCost in schema components_xsd Drilldown into ResourceAllocationGroup in schema manufacturingcomponents_xsd Drilldown into OperationReference in schema components_xsdXSD Diagram of OperationAllocationType in schema manufacturingcomponents_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="OperationAllocationType">
    <xsd:sequence>
        <xsd:element ref="OperationReference" minOccurs="0" />
        <xsd:group ref="ResourceAllocationGroup" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
OperationReference nsA:OperationReference 0 (1)
UnitCost nsA:UnitCost 0 (1)
RequiredQuantity nsA:RequiredQuantity 0 (1)
RequiredDuration nsA:RequiredDuration 0 (1)
TotalCostAmount nsA:TotalCostAmount 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:ResourceAllocationGroup (1) (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:OperationAllocation
