Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: Organization
Namespace: http://www.openapplications.org/oagis/9/reusableaggregatecorecomponentSchemaModule/0.1
Type: rcm:OrganizationType
Containing Schema: ReusableAggregateCoreComponent.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
ASCC000004 Account. Organization 0.1 To provide information about any organization related to this account. 0..n Account Organization Organization

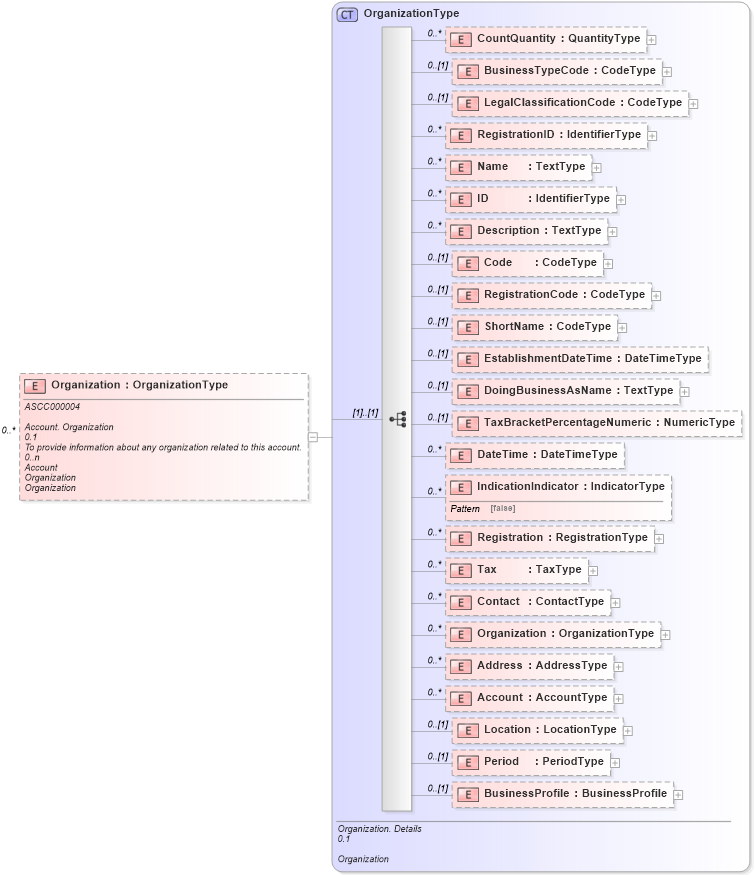

Collapse XSD Schema Diagram:
Drilldown into BusinessProfile in schema reusableaggregatecorecomponent_xsd Drilldown into Period in schema reusableaggregatecorecomponent_xsd Drilldown into Location in schema reusableaggregatecorecomponent_xsd Drilldown into Account in schema reusableaggregatecorecomponent_xsd Drilldown into Address in schema reusableaggregatecorecomponent_xsd Drilldown into Organization in schema reusableaggregatecorecomponent_xsd Drilldown into Contact in schema reusableaggregatecorecomponent_xsd Drilldown into Tax in schema reusableaggregatecorecomponent_xsd Drilldown into Registration in schema reusableaggregatecorecomponent_xsd Drilldown into IndicationIndicator in schema reusableaggregatecorecomponent_xsd Drilldown into DateTime in schema reusableaggregatecorecomponent_xsd Drilldown into TaxBracketPercentageNumeric in schema reusableaggregatecorecomponent_xsd Drilldown into DoingBusinessAsName in schema reusableaggregatecorecomponent_xsd Drilldown into EstablishmentDateTime in schema reusableaggregatecorecomponent_xsd Drilldown into ShortName in schema reusableaggregatecorecomponent_xsd Drilldown into RegistrationCode in schema reusableaggregatecorecomponent_xsd Drilldown into Code in schema reusableaggregatecorecomponent_xsd Drilldown into Description in schema reusableaggregatecorecomponent_xsd Drilldown into ID in schema reusableaggregatecorecomponent_xsd Drilldown into Name in schema reusableaggregatecorecomponent_xsd Drilldown into RegistrationID in schema reusableaggregatecorecomponent_xsd Drilldown into LegalClassificationCode in schema reusableaggregatecorecomponent_xsd Drilldown into BusinessTypeCode in schema reusableaggregatecorecomponent_xsd Drilldown into CountQuantity in schema reusableaggregatecorecomponent_xsd Drilldown into OrganizationType in schema reusableaggregatecorecomponent_xsdXSD Diagram of Organization in schema reusableaggregatecorecomponent_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="Organization" type="rcm:OrganizationType" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">
            <ccts:UniqueID xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">ASCC000004</ccts:UniqueID>
            <ccts:CategoryCode xmlns:ccts="urn:un:unece:uncefact:documentation:1.1" />
            <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Account. Organization</ccts:DictionaryEntryName>
            <ccts:VersionID xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">0.1</ccts:VersionID>
            <ccts:DefinitionText xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">To provide information about any organization related to this account.</ccts:DefinitionText>
            <ccts:Cardinality xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">0..n</ccts:Cardinality>
            <ccts:ObjectClassTermName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Account</ccts:ObjectClassTermName>
            <ccts:PropertyTermName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Organization</ccts:PropertyTermName>
            <ccts:AssociatedObjectClassTermName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Organization</ccts:AssociatedObjectClassTermName>
            <ccts:UsageRule xmlns:ccts="urn:un:unece:uncefact:documentation:1.1" />
            <ccts:BusinessTermName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1" />
            <ccts:Example xmlns:ccts="urn:un:unece:uncefact:documentation:1.1" />
        </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CountQuantity rcm:CountQuantity 0 unbounded
BusinessTypeCode rcm:BusinessTypeCode 0 (1)
LegalClassificationCode rcm:LegalClassificationCode 0 (1)
RegistrationID rcm:RegistrationID 0 unbounded
Name rcm:Name 0 unbounded
ID rcm:ID 0 unbounded
Description rcm:Description 0 unbounded
Code rcm:Code 0 (1)
RegistrationCode rcm:RegistrationCode 0 (1)
ShortName rcm:ShortName 0 (1)
EstablishmentDateTime rcm:EstablishmentDateTime 0 (1)
DoingBusinessAsName rcm:DoingBusinessAsName 0 (1)
TaxBracketPercentageNumeric rcm:TaxBracketPercentageNumeric 0 (1)
DateTime rcm:DateTime 0 unbounded
IndicationIndicator rcm:IndicationIndicator 0 unbounded
Registration rcm:Registration 0 unbounded
Tax rcm:Tax 0 unbounded
Contact rcm:Contact 0 unbounded
Organization rcm:Organization 0 unbounded
Address rcm:Address 0 unbounded
Account rcm:Account 0 unbounded
Location rcm:Location 0 (1)
Period rcm:Period 0 (1)
BusinessProfile rcm:BusinessProfile 0 (1)
Collapse Derivation Tree:
