Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: PaymentScheme
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:PaymentSchemeType
Containing Schema: Components.xsd
Abstract
Documentation:
Pre agreed offering between clearing agents or channel through which the payment instruction is to be processed. This payment scheme can point to a specific rulebook governing the rules of clearing and settlement between two parties.

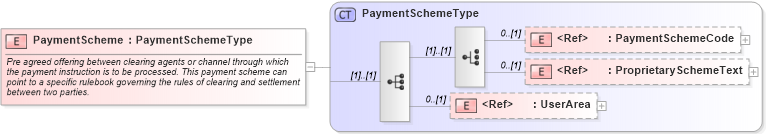

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into ProprietarySchemeText in schema fields_xsd Drilldown into PaymentSchemeCode in schema fields_xsd Drilldown into PaymentSchemeType in schema components_xsd1XSD Diagram of PaymentScheme in schema components_xsd1 (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="PaymentScheme" type="PaymentSchemeType">
    <xsd:annotation>
        <xsd:documentation>Pre agreed offering between clearing agents or channel through which the payment instruction is to be processed. This payment scheme can point to a specific rulebook governing the rules of clearing and settlement between two parties.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PaymentSchemeCode nsA:PaymentSchemeCode 0 (1)
ProprietarySchemeText nsA:ProprietarySchemeText 0 (1)
UserArea nsA:UserArea 0 (1)
Collapse Derivation Tree:
