Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: PaymentStatusOriginalPayment
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:TransferPaymentType
Containing Schema: PaymentStatus.xsd
Abstract
Collapse XSD Schema Diagram:

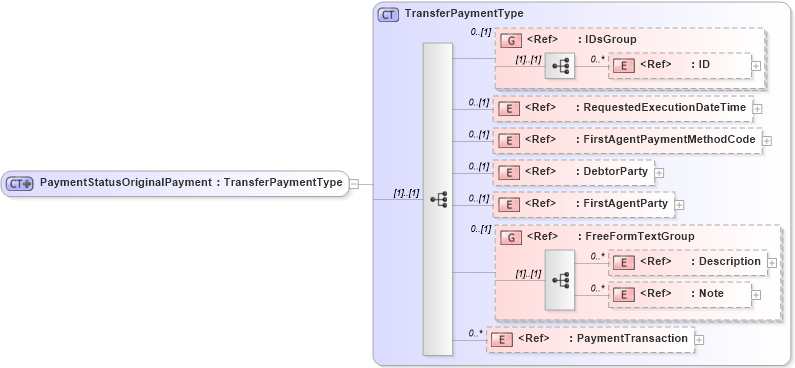

Drilldown into PaymentTransaction in schema components_xsd1 Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into FirstAgentParty in schema components_xsd Drilldown into DebtorParty in schema components_xsd1 Drilldown into FirstAgentPaymentMethodCode in schema fields_xsd Drilldown into RequestedExecutionDateTime in schema fields_xsd Drilldown into ID in schema fields_xsd Drilldown into IDsGroup in schema components_xsd Drilldown into TransferPaymentType in schema components_xsd1XSD Diagram of PaymentStatusOriginalPayment in schema paymentstatus_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="PaymentStatusOriginalPayment">
    <xsd:complexContent>
        <xsd:extension base="TransferPaymentType" />
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 unbounded
RequestedExecutionDateTime nsA:RequestedExecutionDateTime 0 (1)
FirstAgentPaymentMethodCode nsA:FirstAgentPaymentMethodCode 0 (1)
DebtorParty nsA:DebtorParty 0 (1)
FirstAgentParty nsA:FirstAgentParty 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
PaymentTransaction nsA:PaymentTransaction 0 unbounded
<xs:group> nsA:IDsGroup 0 (1)
<xs:group> nsA:FreeFormTextGroup 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:PaymentStatusPayment
