Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: PaymentTermType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: Components.xsd
Abstract
Collapse XSD Schema Diagram:

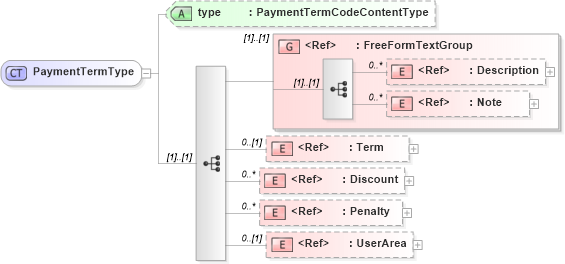

Drilldown into UserArea in schema fields_xsd Drilldown into Penalty in schema components_xsd Drilldown into Discount in schema components_xsd Drilldown into Term in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into type in schema components_xsdXSD Diagram of PaymentTermType in schema components_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="PaymentTermType">
    <xsd:sequence>
        <xsd:group ref="FreeFormTextGroup" />
        <xsd:element ref="Term" minOccurs="0" />
        <xsd:element ref="Discount" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="Penalty" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
    <xsd:attribute name="type" type="PaymentTermCodeContentType" use="optional" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
Term nsA:Term 0 (1)
Discount nsA:Discount 0 unbounded
Penalty nsA:Penalty 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type nsA:type Optional
Collapse Derivation Tree:
Collapse References:
nsA:PaymentTerm
