Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: PersonType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:PersonABIEType
Containing Schema: Components.xsd
Abstract

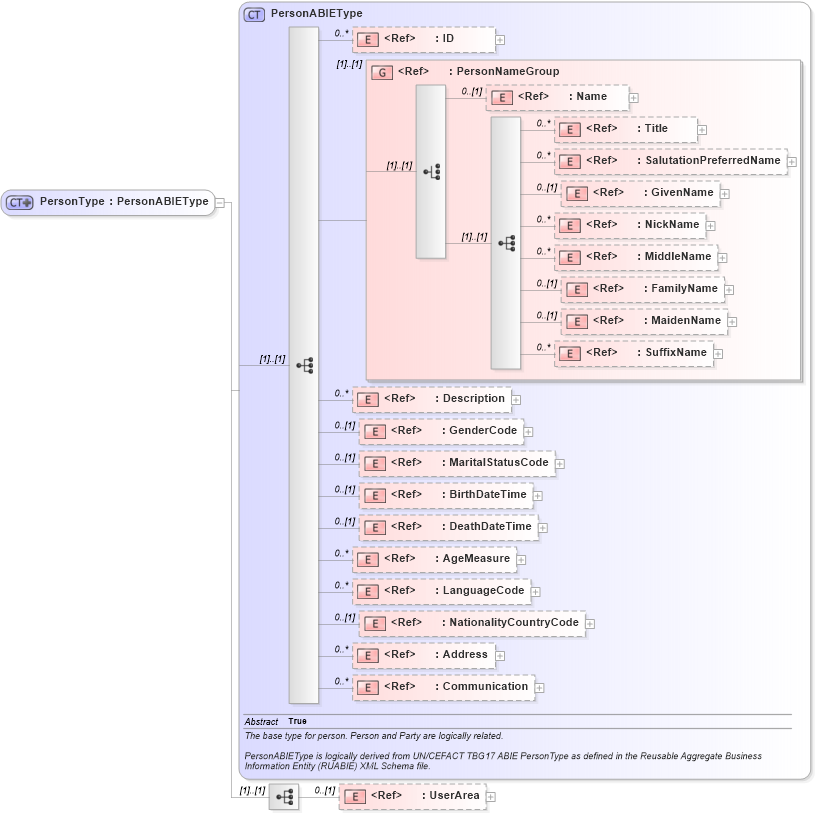

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Communication in schema components_xsd Drilldown into Address in schema components_xsd Drilldown into NationalityCountryCode in schema fields_xsd Drilldown into LanguageCode in schema fields_xsd Drilldown into AgeMeasure in schema fields_xsd Drilldown into DeathDateTime in schema fields_xsd Drilldown into BirthDateTime in schema fields_xsd Drilldown into MaritalStatusCode in schema fields_xsd Drilldown into GenderCode in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into SuffixName in schema fields_xsd Drilldown into MaidenName in schema fields_xsd Drilldown into FamilyName in schema fields_xsd Drilldown into MiddleName in schema fields_xsd Drilldown into NickName in schema fields_xsd Drilldown into GivenName in schema fields_xsd Drilldown into SalutationPreferredName in schema components_xsd Drilldown into Title in schema fields_xsd Drilldown into Name in schema fields_xsd Drilldown into PersonNameGroup in schema components_xsd Drilldown into ID in schema fields_xsd Drilldown into PersonABIEType in schema components_xsdXSD Diagram of PersonType in schema components_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="PersonType">
    <xsd:complexContent>
        <xsd:extension base="PersonABIEType">
            <xsd:sequence>
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 unbounded
Name nsA:Name 0 (1)
Title nsA:Title 0 unbounded
SalutationPreferredName nsA:SalutationPreferredName 0 unbounded
GivenName nsA:GivenName 0 (1)
NickName nsA:NickName 0 unbounded
MiddleName nsA:MiddleName 0 unbounded
FamilyName nsA:FamilyName 0 (1)
MaidenName nsA:MaidenName 0 (1)
SuffixName nsA:SuffixName 0 unbounded
Description nsA:Description 0 unbounded
GenderCode nsA:GenderCode 0 (1)
MaritalStatusCode nsA:MaritalStatusCode 0 (1)
BirthDateTime nsA:BirthDateTime 0 (1)
DeathDateTime nsA:DeathDateTime 0 (1)
AgeMeasure nsA:AgeMeasure 0 unbounded
LanguageCode nsA:LanguageCode 0 unbounded
NationalityCountryCode nsA:NationalityCountryCode 0 (1)
Address nsA:Address 0 unbounded
Communication nsA:Communication 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:PersonNameGroup (1) (1)
Collapse Derivation Tree:
