Definition Type: ComplexType
Name: PickListLineDetail
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:LineType
Containing Schema: PickList.xsd
Abstract

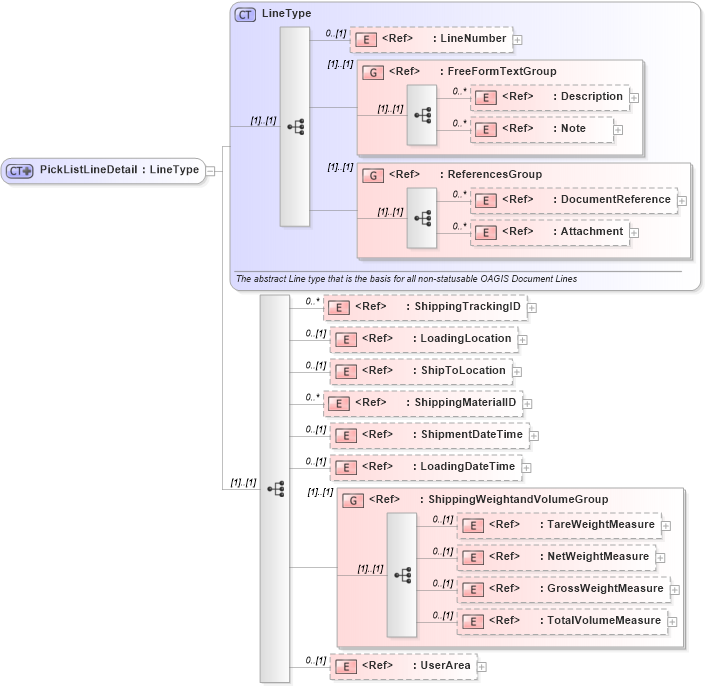

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into TotalVolumeMeasure in schema fields_xsd Drilldown into GrossWeightMeasure in schema fields_xsd Drilldown into NetWeightMeasure in schema fields_xsd Drilldown into TareWeightMeasure in schema fields_xsd Drilldown into ShippingWeightandVolumeGroup in schema components_xsd Drilldown into LoadingDateTime in schema fields_xsd Drilldown into ShipmentDateTime in schema fields_xsd Drilldown into ShippingMaterialID in schema fields_xsd Drilldown into ShipToLocation in schema components_xsd Drilldown into LoadingLocation in schema components_xsd Drilldown into ShippingTrackingID in schema fields_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into LineNumber in schema fields_xsd Drilldown into LineType in schema components_xsdXSD Diagram of PickListLineDetail in schema picklist_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="PickListLineDetail">
    <xsd:complexContent>
        <xsd:extension base="LineType">
            <xsd:sequence>
                <xsd:element ref="ShippingTrackingID" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="LoadingLocation" minOccurs="0" />
                <xsd:element ref="ShipToLocation" minOccurs="0" />
                <xsd:element ref="ShippingMaterialID" minOccurs="0" maxOccurs="unbounded">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Description of the packaging</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="ShipmentDateTime" minOccurs="0" />
                <xsd:element ref="LoadingDateTime" minOccurs="0" />
                <xsd:group ref="ShippingWeightandVolumeGroup" />
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumber nsA:LineNumber 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
ShippingTrackingID nsA:ShippingTrackingID 0 unbounded
LoadingLocation nsA:LoadingLocation 0 (1)
ShipToLocation nsA:ShipToLocation 0 (1)
ShippingMaterialID nsA:ShippingMaterialID 0 unbounded
ShipmentDateTime nsA:ShipmentDateTime 0 (1)
LoadingDateTime nsA:LoadingDateTime 0 (1)
TareWeightMeasure nsA:TareWeightMeasure 0 (1)
NetWeightMeasure nsA:NetWeightMeasure 0 (1)
GrossWeightMeasure nsA:GrossWeightMeasure 0 (1)
TotalVolumeMeasure nsA:TotalVolumeMeasure 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
<xs:group> nsA:ShippingWeightandVolumeGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:PickListLineDetail
