Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: PmtInf
Namespace: urn:swift:xsd:$pain.001.001.01
Type: ist:PaymentInformation6
Containing Schema: pain.001.001.01.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract

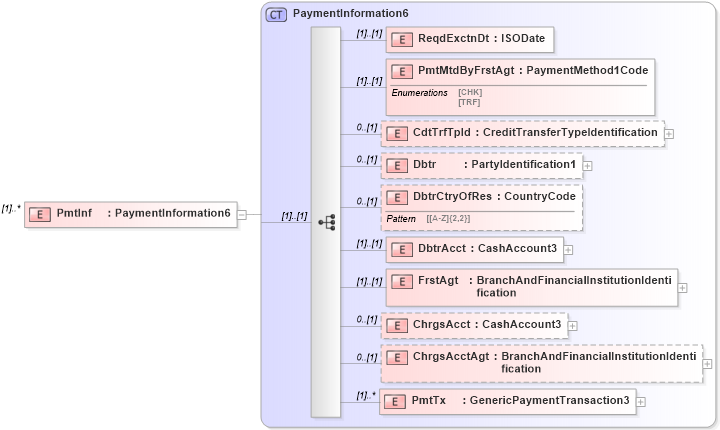

Collapse XSD Schema Diagram:
Drilldown into PmtTx in schema pain_001_001_01_xsd Drilldown into ChrgsAcctAgt in schema pain_001_001_01_xsd Drilldown into ChrgsAcct in schema pain_001_001_01_xsd Drilldown into FrstAgt in schema pain_001_001_01_xsd Drilldown into DbtrAcct in schema pain_001_001_01_xsd Drilldown into DbtrCtryOfRes in schema pain_001_001_01_xsd Drilldown into Dbtr in schema pain_001_001_01_xsd Drilldown into CdtTrfTpId in schema pain_001_001_01_xsd Drilldown into PmtMtdByFrstAgt in schema pain_001_001_01_xsd Drilldown into ReqdExctnDt in schema pain_001_001_01_xsd Drilldown into PaymentInformation6 in schema pain_001_001_01_xsdXSD Diagram of PmtInf in schema pain_001_001_01_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xs:element name="PmtInf" type="PaymentInformation6" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ReqdExctnDt ist:ReqdExctnDt (1) (1)
PmtMtdByFrstAgt ist:PmtMtdByFrstAgt (1) (1)
CdtTrfTpId ist:CdtTrfTpId 0 (1)
Dbtr ist:Dbtr 0 (1)
DbtrCtryOfRes ist:DbtrCtryOfRes 0 (1)
DbtrAcct ist:DbtrAcct (1) (1)
FrstAgt ist:FrstAgt (1) (1)
ChrgsAcct ist:ChrgsAcct 0 (1)
ChrgsAcctAgt ist:ChrgsAcctAgt 0 (1)
PmtTx ist:PmtTx (1) unbounded
Collapse Derivation Tree:
